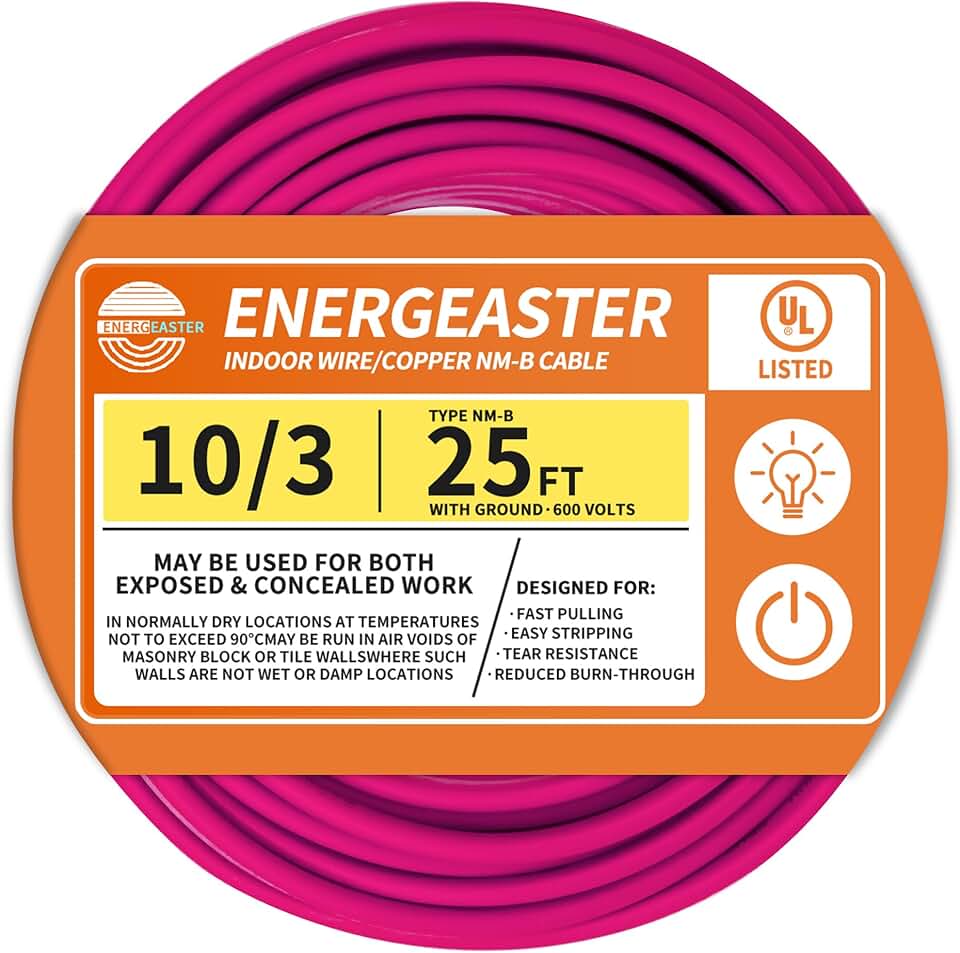

10/3 NM-B Cable: Essential Indoor Wire – Excellent

The 10/3 NM-B Cable is a fundamental component for various electrical installations within residential and light commercial settings. This particular cable, featuring a 10 AWG gauge and three conductors with a ground wire, offers a robust and reliable solution for circuits demanding higher amperage or 240-volt applications. Understanding its specifications and proper applications is crucial for any successful electrical project.

10/3 NM-B Cable Overview

The 10/3 NM-B Cable stands as a workhorse in residential electrical wiring, particularly for circuits that demand higher current capacity. NM-B, which stands for Non-Metallic Sheathed Cable, Type B, is one of the most common types of electrical cable used for general wiring in homes and buildings. This specific configuration, 10/3, indicates critical details about its construction and application.

The first number, ’10’, refers to the wire gauge, specifically 10 AWG (American Wire Gauge). This gauge is thicker than common 12 AWG or 14 AWG wires, making it suitable for circuits rated up to 30 amperes. Such circuits are often dedicated to high-power appliances like electric water heaters, central air conditioning units, electric ovens, or specific heavy-duty 240-volt outlets.

The second number, ‘3’, signifies the number of insulated conductors within the cable, excluding the ground wire. In a 10/3 cable, this typically means there are three insulated wires: one black (hot), one red (hot), and one white (neutral). This configuration is essential for 240-volt circuits, where two hot wires provide the necessary voltage, or for certain 120-volt circuits requiring a dedicated neutral and two switched hot legs, though 240V is its primary high-power role.

Crucially, the ‘with Ground Wire’ specification means there is an additional bare copper conductor, which is the equipment grounding conductor. This ground wire is vital for safety, providing a path for fault current in the event of an electrical short, thereby preventing electric shock and potential fires. Its inclusion ensures that the installation meets modern electrical safety standards.

The ‘Solid Indoor’ designation emphasizes that this 10/3 NM-B Cable is designed for permanent installation in dry, interior locations. It is not intended for direct burial, use in wet or damp environments, or exposure to harsh outdoor elements. Its PVC jacket provides protection against abrasion and minor impacts, making it durable for concealment within walls, ceilings, and floors.

Understanding the properties of this cable is paramount for ensuring both safety and optimal performance in any electrical system. Proper sizing and application prevent overheating, voltage drop, and potential hazards. Electricians and DIY enthusiasts alike rely on the consistent performance and adherence to standards that NM-B cable provides, making it a staple in electrical supply inventories.

Furthermore, the ‘Pure Copper’ aspect is significant. Copper is highly valued for its excellent electrical conductivity, thermal performance, and ductility. Pure copper wires offer minimal resistance, leading to less energy loss and ensuring that appliances receive the full power they require. This contributes to the efficiency and longevity of the electrical system, distinguishing it from lesser-quality, copper-clad aluminum alternatives.

The 25-foot length provided is ideal for smaller projects, such as extending a dedicated circuit for a new appliance, wiring a small addition, or performing targeted repairs. While larger spools are available for extensive new construction, a 25-foot segment of 10/3 NM-B Cable offers convenience and cost-effectiveness for more contained electrical tasks, reducing waste and simplifying procurement for specific needs.

10/3 NM-B Cable Key Features & Specifications

The design and construction of the 10/3 NM-B Cable are tailored to provide reliable and safe electrical connectivity for specific applications. Each feature contributes to its overall performance and suitability for various indoor wiring tasks. Let’s delve into the core specifications that define this essential cable.

10 AWG Gauge for High Current Capacity

The ’10 AWG’ designation is perhaps the most critical specification for this cable. American Wire Gauge (AWG) is a standardized system for measuring wire diameter. A 10 AWG wire has a larger diameter than 12 AWG or 14 AWG wires, allowing it to safely carry more electrical current without overheating. This makes it ideal for circuits requiring up to 30 amperes, ensuring that high-demand appliances operate safely and efficiently.

Using a 10 AWG wire prevents excessive voltage drop over short to medium distances, which is crucial for the optimal performance and longevity of appliances. It also significantly reduces the risk of electrical fires due to overloaded circuits. This robust gauge is a primary reason for choosing this specific 10/3 NM-B Cable for heavy-duty applications.

Three Conductors with Ground Wire

The ‘3 Conductors with Ground Wire’ aspect defines the cable’s internal structure. It includes three insulated copper wires: typically one black (hot), one red (hot), and one white (neutral). This configuration is perfectly suited for 240-volt circuits, common for electric ranges, water heaters, and central air conditioners, where two hot wires provide the necessary voltage differential.

Additionally, a bare copper ground wire is included, providing a critical safety path for fault currents. This ground wire connects to the equipment casing and eventually back to the main electrical panel, tripping a circuit breaker in case of a short circuit. This safety feature is mandated by the National Electrical Code (NEC) and is indispensable for modern electrical installations. You can refer to the National Electrical Code (NEC) for detailed guidelines.

Type NM-B (Non-Metallic Sheathed Cable)

The ‘Type NM-B’ specifies that this is a non-metallic sheathed cable designed for use in dry locations. NM-B cable features a thermoplastic jacket that encases all conductors, providing insulation and protection. It is a cost-effective and widely accepted wiring method for residential and some commercial construction.

NM-B cable is typically installed inside walls, ceilings, and floor cavities, where it is protected from physical damage and moisture. Its robust jacket makes it easy to pull through studs and joists, simplifying the installation process for electricians and DIY enthusiasts. However, it is crucial to remember its limitation to dry, indoor environments.

Pure Copper Conductors

The use of ‘Pure Copper’ for the conductors is a premium feature that ensures superior electrical performance. Copper is known for its excellent conductivity, second only to silver, and its resistance to corrosion. Pure copper wires maintain their integrity over time, providing a stable and efficient electrical path.

Compared to aluminum or copper-clad aluminum (CCA) wires, pure copper offers lower resistance, resulting in less heat generation and greater energy efficiency. This translates to reduced utility bills and a longer lifespan for both the wiring and connected appliances. The reliability of pure copper makes this 10/3 NM-B Cable a trustworthy choice for critical circuits.

25FT Length

This cable comes in a convenient ’25FT’ length, which is ideal for smaller, targeted electrical projects. For instance, if you need to run a dedicated circuit for a new electric dryer or install a specific 240V outlet, a 25-foot section often provides just enough material without requiring you to purchase a much larger, more expensive spool. This minimizes waste and makes the project more manageable.

The shorter length is particularly beneficial for DIY homeowners or small contractors who only need a limited amount of specific gauge wire. It allows for precise planning and execution of electrical tasks without the burden of storing excess material. For larger renovations or new construction, multiple 25ft lengths might be combined, or a larger spool might be more economical.

Pink Jacket Color

The ‘Pink’ jacket color is an interesting and somewhat unusual feature for NM-B cable. While standard NM-B jacket colors typically denote the wire gauge (e.g., white for 14 AWG, yellow for 12 AWG, orange for 10 AWG), a pink jacket could indicate a specific manufacturer’s branding or a unique product line. While its primary function is protective, the color might also aid in quick identification in a cluttered junction box or when distinguishing it from other cables.

It’s important to note that the color of the outer jacket does not affect the cable’s electrical performance or compliance with code. The internal conductor insulation colors (black, red, white, bare) remain standard for proper identification during wiring. For more general information on wire types and colors, resources like the Copper Development Association offer valuable insights.

Voltage and Temperature Ratings

Standard 10/3 NM-B Cable is typically rated for 600 volts, making it suitable for all standard residential and light commercial wiring applications (120V, 240V). It also usually carries a temperature rating of 90°C (194°F), meaning its insulation can safely withstand ambient temperatures up to this point. These ratings ensure the cable’s durability and safety under normal operating conditions.

Understanding these ratings is essential for safe installation. Exceeding the voltage or temperature limits can lead to insulation breakdown, short circuits, and fire hazards. Always ensure that the cable’s ratings are appropriate for the specific environmental conditions and electrical load of your project. This particular cable adheres to these industry-standard benchmarks for safety and performance.

Pros & Cons of the 10/3 NM-B Cable

Evaluating any electrical component involves weighing its advantages against its limitations. The 10/3 NM-B Cable, while being an excellent choice for many applications, also comes with specific considerations. Understanding these pros and cons will help you determine if it’s the right fit for your electrical project.

Pros of the 10/3 NM-B Cable

• High Current Capacity (10 AWG): The most significant advantage of this cable is its ability to safely carry up to 30 amperes of current. This makes it indispensable for dedicated circuits powering high-demand appliances such as electric ranges, ovens, water heaters, and central air conditioning units. It minimizes voltage drop and overheating risks, ensuring appliance longevity and safety.
• Pure Copper Conductors: The use of pure copper ensures superior electrical conductivity and thermal performance. Copper is highly efficient, reducing energy loss and heat generation, which translates to lower operating costs and increased safety. Its corrosion resistance also contributes to a longer lifespan for the wiring system, providing consistent performance over decades.
• Suitable for 240V Applications with Ground: With three insulated conductors (typically black, red, white) and a bare ground wire, this cable is perfectly configured for 240-volt circuits. This setup allows for the efficient and safe operation of larger appliances that require higher voltage, providing both power and critical grounding protection against electrical faults.
• Durable NM-B Jacket: The non-metallic sheathed (NM-B) jacket provides robust protection for the internal conductors against abrasion, punctures, and minor impacts. This durable outer layer ensures the cable’s integrity during installation and throughout its service life, especially when run inside walls, ceilings, and other concealed areas.
• Easy to Strip and Install (Solid Core): Solid core wires, like those in this 10/3 NM-B Cable, are generally easier to strip and terminate into connectors, outlets, and circuit breakers. Their rigidity allows them to hold their shape once bent, simplifying the process of connecting them to terminals. This can save time and effort during installation, particularly for experienced electricians.
• Meets NEC Standards: This type of cable is manufactured to meet the rigorous standards of the National Electrical Code (NEC). Adherence to NEC ensures that the cable is safe, reliable, and compliant with local building codes. Using code-compliant materials is essential for passing inspections and ensuring the long-term safety of your electrical system.
• Reliable for Critical Circuits: Given its robust construction and high current capacity, this cable is highly reliable for critical, dedicated circuits. It provides a stable power supply to essential appliances, reducing the likelihood of circuit overloads or power interruptions. This reliability is paramount for appliances that run continuously or have high power requirements.

Cons of the 10/3 NM-B Cable

• Limited to Dry Indoor Use: One significant limitation is that NM-B cable is strictly designed for dry, indoor locations. It is not suitable for direct burial, wet or damp environments, or outdoor exposure unless protected within approved conduit. Using it in unsuitable conditions can lead to insulation degradation, electrical hazards, and code violations.
• Stiffer Than Stranded Wire: The solid copper conductors, while excellent for conductivity and termination, make the cable relatively stiff. This rigidity can make it challenging to bend and maneuver in tight spaces, such as crowded junction boxes or conduit runs with multiple turns. Installing it might require more effort and careful handling compared to more flexible stranded wire.
• 25ft Length Might Be Too Short for Larger Projects: While convenient for small, specific tasks, a 25-foot length of 10/3 NM-B Cable can be a drawback for larger electrical projects. Extensive renovations or new construction often require hundreds of feet of cable, making a 25ft spool impractical and potentially more expensive per foot than bulk rolls.
• Pink Color Might Be Unusual: The specified ‘Pink’ jacket color is non-standard for 10 AWG NM-B cable, which is typically orange. While purely cosmetic and not affecting performance, this unusual color might be unexpected for some users. It could potentially lead to confusion if not clearly labeled or if installers are accustomed to standard color coding conventions.

Who Should Buy the 10/3 NM-B Cable?

The decision to purchase the 10/3 NM-B Cable depends largely on the specific electrical needs and the scope of a project. This particular cable is not a general-purpose wire but rather a specialized solution for circuits requiring higher amperage and specific voltage configurations. Identifying the right user for this product is essential to ensure safe and effective electrical installations.

DIY Homeowners with Specific Appliance Needs

This cable is an excellent choice for homeowners undertaking specific DIY projects that involve installing or upgrading high-power appliances. If you are adding a new electric water heater, an electric oven, a high-BTU central air conditioning unit, or a dedicated 240-volt outlet for a workshop tool, the 10/3 NM-B cable is precisely what you need. It provides the necessary current capacity and voltage configuration for these demanding applications.

However, it is crucial that DIYers possess a fundamental understanding of electrical wiring and safety protocols. Working with 240-volt circuits and higher amperages requires careful attention to detail and adherence to local electrical codes. Consulting a licensed electrician or thoroughly researching the NEC guidelines is highly recommended before commencing any such project.

Electricians and Contractors for Small Repair Jobs or Additions

For professional electricians and contractors, the 25-foot length of 10/3 NM-B Cable is incredibly practical for small repair jobs, service calls, or minor additions to existing electrical systems. Instead of unrolling a large, heavy spool for a short run, a pre-cut 25-foot section offers convenience, reduces waste, and simplifies inventory management. It’s perfect for replacing a damaged section of existing 10/3 wiring or extending a circuit for a new appliance in a kitchen or utility room.

Contractors working on residential remodels or small commercial build-outs might find this length ideal for dedicated circuits in specific areas. Its reliability and compliance with NEC standards mean that professionals can trust its performance and ensure their installations meet all safety requirements, providing peace of mind to their clients.

The ease of handling and specific gauge make it a go-to for these targeted tasks, ensuring that the right wire is always on hand without unnecessary bulk or expense. Its solid core conductors, while stiff, are familiar to professionals and allow for secure, lasting connections.

Renovation Enthusiasts Upgrading Home Wiring

Home renovation enthusiasts who are looking to upgrade older wiring or add new, high-capacity circuits within their homes will find this cable invaluable. As homes age, electrical demands often increase beyond what older wiring can safely handle. Installing a new 240-volt circuit for a modern electric vehicle charger (if applicable to the specific charger type), a new workshop appliance, or an upgraded HVAC system often necessitates 10/3 wiring.

The 10/3 NM-B Cable allows these renovators to bring their homes up to modern electrical standards, enhancing safety and functionality. Its solid pure copper construction ensures that the upgraded circuits will be reliable and efficient for years to come. This is a crucial step in future-proofing a home’s electrical infrastructure, especially when adding new, energy-intensive devices.

Anyone Needing Reliable 240V or High-Amperage 120V Wiring

Ultimately, anyone who needs to install or repair a circuit that requires a 240-volt supply or a high-amperage 120-volt connection should consider this 10/3 NM-B cable. This includes scenarios where a dedicated 30-amp circuit is needed for a specific piece of equipment that draws a lot of power. The cable’s robust design ensures that power is delivered consistently and safely, without risk of overloading.

For example, even certain heavy-duty 120-volt appliances, such as commercial-grade air compressors or large shop tools, might be better served by a dedicated 30-amp, 10 AWG circuit to prevent nuisance tripping of breakers and ensure stable power. The 10/3 configuration provides the flexibility for either 240V or certain 120V applications, making it a versatile choice for specific power requirements.

It is important to always consult the appliance’s specifications and local electrical codes to determine the correct wire gauge and circuit type. Incorrect wiring can lead to serious hazards. This 10/3 NM-B cable is designed to meet the demands of applications where standard 12 AWG or 14 AWG wiring would be insufficient, ensuring optimal safety and performance for your electrical system.

FAQ about 10/3 NM-B Cable

Understanding the specifics of electrical cable is crucial for safe and compliant installations. Here are some frequently asked questions about the 10/3 NM-B Cable to help clarify its uses, limitations, and key characteristics.

Q1: What does “10/3” mean in electrical cable?

A: The designation “10/3” in electrical cable refers to two key characteristics. The ’10’ indicates the wire gauge, meaning it is 10 AWG (American Wire Gauge), which is suitable for carrying up to 30 amperes of current. The ‘/3’ means there are three insulated conductors inside the cable, not including the bare ground wire. In this case, it usually refers to a black (hot), red (hot), and white (neutral) wire, plus a bare copper ground.

This configuration is commonly used for 240-volt circuits, where the black and red wires serve as the two hot legs, the white wire as the neutral, and the bare wire as the equipment ground. It can also be used for certain 120-volt applications requiring a dedicated neutral and two switched hot legs, though its primary role is for higher voltage or amperage circuits. Always check the specific application requirements.

Q2: Where can 10/3 NM-B cable be used?

A: 10/3 NM-B Cable is specifically designed for use in dry, indoor locations. This includes wiring within the walls, ceilings, and floors of residential homes and light commercial buildings. Common applications include dedicated circuits for high-power appliances such as electric water heaters, electric ovens, electric dryers, central air conditioning units, and 240-volt workshop outlets.

It can also be used for multi-wire branch circuits (MWBCs) where two 120-volt circuits share a common neutral, though this requires careful wiring and proper overcurrent protection. It is crucial to remember that NM-B cable is not rated for outdoor use, wet or damp locations, direct burial, or in locations where it would be exposed to physical damage without proper conduit protection.

Q3: What’s the maximum amperage for 10 AWG wire?

A: According to the National Electrical Code (NEC), 10 AWG copper wire is typically rated for a maximum of 30 amperes when used for general wiring in non-flexible applications, such as within NM-B cable. This ampacity rating is based on specific temperature ratings of the insulation and installation methods.

It is important to always match the wire gauge to the circuit breaker size and the load requirements of the connected appliance. A 30-amp circuit breaker should be used with 10 AWG wire to ensure proper overcurrent protection. Exceeding the 30-amp limit can lead to overheating, insulation damage, and potential fire hazards. Always refer to the latest NEC guidelines for precise ampacity tables.

Q4: Is solid copper better than stranded for NM-B?

A: For NM-B cable, solid copper conductors are generally preferred and more commonly used for fixed installations. Solid copper offers excellent conductivity and is less prone to corrosion at termination points compared to stranded wire. Its rigidity makes it easier to push through conduits and to terminate securely into screw terminals on outlets, switches, and circuit breakers, as it holds its shape.

Stranded wire, conversely, is more flexible and is typically used for applications where the wire needs to be bent frequently or in situations requiring greater vibration resistance, such as appliance cords or flexible conduits. For permanent, concealed wiring within walls, the benefits of solid copper (durability, conductivity, ease of termination in fixed points) usually outweigh the flexibility of stranded wire.

Q5: Why is this cable pink?

A: The ‘Pink’ jacket color for this specific 10/3 NM-B Cable is unusual, as standard NM-B jacket colors are typically white (14 AWG), yellow (12 AWG), or orange (10 AWG). A pink jacket likely indicates a specific manufacturer’s branding or a unique product line. The color of the outer jacket does not affect the electrical properties or performance of the cable.

Its primary function, regardless of color, is to protect the internal conductors and provide insulation. While the color might be distinctive, installers should always rely on the printed markings on the cable jacket (e.g., “10/3 NM-B”) and the internal conductor colors (black, red, white, bare) for proper identification and wiring, rather than solely on the outer jacket color.

Q6: Can I use 10/3 NM-B cable outdoors?

A: No, 10/3 NM-B Cable is strictly rated for dry, indoor use. Its thermoplastic jacket is not designed to withstand prolonged exposure to moisture, sunlight (UV radiation), or extreme temperature fluctuations commonly found outdoors. Using NM-B cable outdoors, in wet locations, or for direct burial will lead to premature degradation of the insulation, creating a significant electrical hazard.

For outdoor or wet location applications, you must use cables specifically rated for those conditions, such as UF-B (Underground Feeder) cable or conductors installed within appropriate conduit (e.g., PVC or metallic conduit) and rated for wet locations (e.g., THWN wire). Always select cable types that are explicitly approved for the environmental conditions of your installation.

Q7: What kind of circuit breakers should I use with 10 AWG wire?

A: For a 10 AWG copper wire, you should always use a 30-ampere circuit breaker. The circuit breaker’s primary function is to protect the wiring from overcurrent, which can cause overheating and fire. Matching the breaker size to the wire’s ampacity rating is a critical safety measure.

If you use a breaker larger than 30 amps with 10 AWG wire, the wire could overheat and potentially cause a fire before the breaker trips. If you use a breaker smaller than 30 amps, it might trip unnecessarily, causing nuisance power interruptions, though this is a safer scenario than an oversized breaker. For 240-volt applications using 10/3 cable, a double-pole 30-amp breaker is typically required.

Q8: How does NM-B differ from other cable types like UF-B or MC?

A: NM-B (Non-Metallic Sheathed Cable, Type B) is designed for dry, indoor, concealed wiring. It has a non-metallic jacket and individual insulated conductors plus a bare ground.

UF-B (Underground Feeder) cable, while also non-metallic, has a much tougher, moisture-resistant outer jacket and its conductors are often embedded within the jacket, making it suitable for direct burial, outdoor, and wet locations. It’s often used for outdoor lighting or detached garages.

MC (Metal-Clad) cable, on the other hand, features an armor of aluminum or steel, providing superior physical protection and often acting as the grounding path. It is commonly used in commercial and industrial settings, or where enhanced protection against physical damage is required, and can be used in some dry, damp, or wet locations depending on its specific listing. Each type serves distinct purposes based on environmental conditions and protection needs.

Final Verdict

The Solid Indoor 10/3 Type NM-B Pure Copper Cable 25FT offers an excellent solution for specific electrical wiring needs within residential and light commercial environments. Its 10 AWG pure copper conductors provide a robust capacity for 30-amp circuits, making it ideal for powering high-demand appliances like electric water heaters, ovens, and central air conditioning units. The inclusion of three insulated conductors and a ground wire ensures its suitability for 240-volt applications, meeting modern safety and performance standards.

While the 25-foot length is perfect for smaller, targeted projects, and the solid core simplifies termination, users must remember its strict limitation to dry, indoor locations. The cable’s durability, adherence to NEC standards, and pure copper construction make it a reliable choice for electricians, contractors, and informed DIY homeowners. Despite the unusual pink jacket, its core functionality and safety features remain paramount, delivering consistent and secure power delivery.

For anyone needing a dependable, code-compliant cable for high-amperage or 240-volt indoor circuits, this 10/3 NM-B Cable represents a solid investment. It ensures both the efficient operation of your appliances and the long-term safety of your electrical system. Just be sure to verify local codes and consult with a professional if you have any doubts about your installation.
