Tested: Innova 3568 Timing Light — Is It Worth It?

The Innova 3568 Timing Light stands out as an essential diagnostic tool for anyone working on automotive engines. This comprehensive review will delve deep into its features, performance, and overall value, helping you understand why it’s a top choice for both professional mechanics and DIY enthusiasts. We will explore its digital precision, multi-functional capabilities, and robust construction.

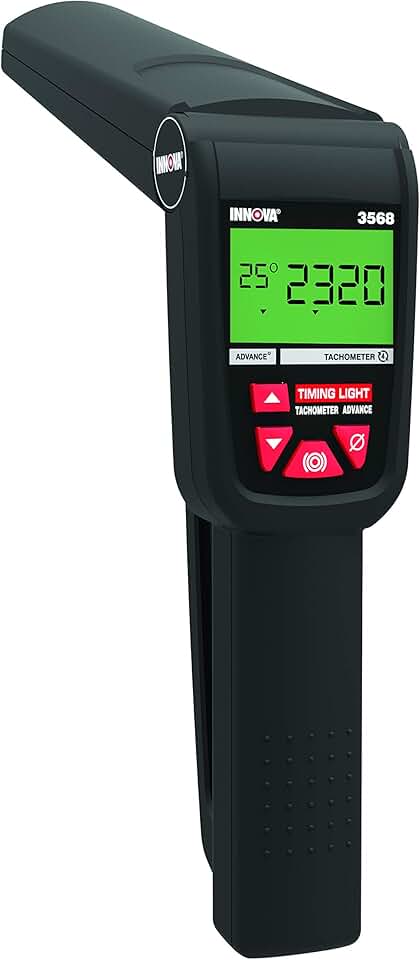

Innova 3568 Timing Light Overview

The Innova 3568 Timing Light is a sophisticated piece of equipment designed to accurately measure and adjust ignition timing in internal combustion engines. Proper ignition timing is paramount for an engine’s efficiency, power output, and longevity. Without correct timing, an engine can suffer from reduced performance, increased fuel consumption, and even severe damage over time.

Historically, timing lights were simple strobe lights that illuminated timing marks on the crankshaft pulley, requiring manual interpretation. The Innova 3568 elevates this process with its digital display and advanced diagnostic capabilities. It provides clear, precise readings, eliminating much of the guesswork associated with older, analog devices.

This digital timing light is not just a basic timing tool; it’s a comprehensive diagnostic instrument. It integrates multiple functions into one robust unit, making it invaluable for modern vehicles with complex ignition systems, as well as classic cars that demand meticulous attention to timing. Its versatility makes it a staple in any serious mechanic’s toolbox.

The core function involves connecting an inductive pickup to the spark plug wire of cylinder number one. When the engine is running, the timing light flashes in sync with the spark, making the timing marks on the crankshaft pulley appear stationary. The digital display then shows the exact timing in degrees before or after top dead center (BTDC/ATDC).

What sets the Innova 3568 apart is its ability to measure RPM, dwell, and voltage, alongside timing. These additional functions provide a more holistic view of the engine’s health and performance. For instance, monitoring RPM helps ensure the engine is idling correctly during timing adjustments, while dwell is critical for older vehicles with contact breaker point ignition systems.

The construction of the Innova 3568 is designed for durability and ease of use in a workshop environment. Its heavy-duty housing protects against drops and impacts, while the long, flexible cables allow for easy reach around engine compartments. The bright, backlit LCD screen ensures readability in various lighting conditions, from a dimly lit garage to direct sunlight.

Understanding ignition timing is fundamental to engine diagnostics and tuning. The Innova 3568 simplifies this often-complex task, making it accessible even for those with moderate mechanical experience. It translates intricate engine signals into easily understandable digital readouts, empowering users to make informed adjustments and diagnoses. For more technical details on ignition timing, you can refer to resources like Wikipedia’s Ignition Timing article.

This tool is particularly beneficial for vehicles where precise timing adjustments are critical for optimal performance, such as performance cars or classic vehicles. It helps in diagnosing misfires, rough idling, and poor acceleration that can often be attributed to incorrect timing. Its advanced features cater to a wide range of automotive applications, solidifying its position as a go-to diagnostic device.

Innova 3568 Timing Light Key Features & Specs

The Innova 3568 Timing Light boasts an impressive array of features and specifications that set it apart from basic timing tools. These capabilities are meticulously engineered to provide accurate, reliable, and comprehensive engine diagnostics. Understanding each feature helps in leveraging the tool to its full potential.

One of its most significant features is the Digital Readout. Unlike analog timing lights that rely on a physical scale, the 3568 presents timing in clear, precise digital degrees. This eliminates parallax errors and makes readings unambiguous, ensuring exceptional accuracy for critical engine adjustments.

The integrated Advance/Retard Function is another powerful capability. This allows users to electronically advance or retard the timing from 0 to 90 degrees, making it suitable for vehicles with or without an advance timing scale on the harmonic balancer. It simplifies the process of setting initial timing and checking mechanical or vacuum advance mechanisms.

Beyond timing, the Innova 3568 is a true multi-meter for ignition systems. It includes an accurate RPM Measurement function, displaying engine revolutions per minute. This is vital for ensuring the engine is at the correct idle speed or specified test RPM when performing timing adjustments, contributing to more accurate results.

The tool also features Voltage Measurement, allowing users to check the vehicle’s battery voltage and charging system output. This can be a quick diagnostic check for common electrical issues, ensuring the vehicle’s electrical system is operating within healthy parameters, which is crucial for proper ignition.

For enthusiasts of classic cars or those working on older engines, the Dwell Measurement function is indispensable. Dwell angle is critical for contact breaker point ignition systems, ensuring the coil has sufficient saturation time to build a strong spark. The Innova 3568 accurately measures this, aiding in proper tune-ups for vintage vehicles.

The Inductive Pickup is a non-invasive clamp that attaches to the spark plug wire of cylinder number one. This design ensures safety and ease of use, as there’s no need to disconnect any high-voltage wires. The pickup effectively senses the electrical pulse without direct contact, protecting both the user and the vehicle’s ignition system.

Durability is a key aspect of the Innova 3568’s design. Its Heavy-Duty Construction features a robust, impact-resistant housing built to withstand the rigors of a garage environment. The ergonomic grip ensures comfortable handling, even during extended diagnostic sessions, showcasing a commitment to user experience and longevity.

The user interface is designed for clarity and efficiency. A large, bright LCD Screen with backlighting ensures excellent visibility in any lighting condition. The intuitive button layout allows for easy switching between modes and adjustments, minimizing complexity and speeding up diagnostic tasks.

In terms of compatibility, the Innova 3568 is designed to work with most automotive ignition systems, including standard (DIS), conventional, and magneto systems. It is suitable for both 2-stroke and 4-stroke engines, making it a versatile tool for a wide range of vehicles, from classic cars to motorcycles and marine engines.

The long Cable Lengths provided with the unit ensure ample reach, accommodating various engine bay configurations without straining connections. This practical design consideration enhances usability, allowing mechanics to comfortably operate the timing light from different angles around the vehicle.

Power for the Innova 3568 is drawn directly from the vehicle’s 12V battery, eliminating the need for internal batteries or external power sources. This straightforward power connection ensures consistent performance and reliability whenever the tool is needed, making it a dependable part of any diagnostic arsenal.

Pros & Cons

Evaluating any tool requires a balanced look at its strengths and weaknesses. The Innova 3568 Digital Timing Light, while highly effective, is no exception. Understanding these points helps potential buyers make an informed decision based on their specific needs and expectations.

Pros of the Innova 3568 Timing Light

One of the most significant advantages of the Innova 3568 is its Exceptional Accuracy and Reliability. The digital display provides precise timing readings, eliminating the subjective interpretation often associated with analog timing lights. This leads to more accurate engine tuning and diagnostics, ensuring optimal performance and fuel efficiency.

The Multi-functionality of this tool is a major selling point. Beyond ignition timing, it measures RPM, dwell, and voltage. This transforms a single-purpose tool into a comprehensive diagnostic device, allowing users to perform multiple checks with one instrument, saving both time and money on purchasing separate tools.

Ease of Use is another strong pro. Despite its advanced capabilities, the Innova 3568 features a user-friendly design. The bright digital display is easy to read in various lighting conditions, and the intuitive button layout simplifies mode selection and adjustments. The inductive pickup also makes connecting to the engine straightforward and safe.

The Durable Build Quality ensures longevity and resilience in a demanding workshop environment. Its heavy-duty housing is designed to withstand accidental drops and impacts, providing peace of mind that the tool will last for years. This robust construction makes it a reliable investment for frequent use.

For its array of features and precision, the Innova 3568 offers Excellent Value for Money. While its initial cost might be higher than basic models, the comprehensive diagnostic capabilities, accuracy, and durability justify the investment. It’s a tool that pays for itself through improved engine performance and avoided costly repairs.

The inclusion of clear and detailed Instructions further enhances the user experience. Innova provides comprehensive manuals that guide users through each function, making it easier for both novices and experienced mechanics to utilize the tool effectively. This reduces the learning curve for maximizing its potential.

Finally, the Bright Display, often backlit, is a practical advantage. Working in poorly lit garages or engine bays is common, and a clear, illuminated screen ensures that readings are always visible and accurate, reducing eye strain and preventing errors during critical adjustments.

Cons of the Innova 3568 Timing Light

Despite its many advantages, the Innova 3568 does have a few drawbacks. The primary one is its Higher Initial Cost compared to very basic analog timing lights. For casual DIYers who only need a timing light for a one-off project, this price point might seem prohibitive, leading them to opt for cheaper, less featured alternatives.

Another potential con is the Steep Learning Curve for Advanced Features. While basic timing adjustment is straightforward, fully utilizing the RPM, dwell, and voltage functions requires some understanding of engine diagnostics. Beginners might find themselves needing to consult the manual or external resources to master all its capabilities, which can be time-consuming.

Some users have occasionally reported minor issues with the Quality of the Inductive Pickup Clips. While generally robust, a few instances suggest the clips could be more durable under very heavy, repetitive use. This is a minor concern but worth noting for those planning extensive daily use in a professional setting.

Lastly, the Innova 3568 typically Does Not Include a Dedicated Storage Case. While not a functional drawback, for a precision instrument of this caliber, a protective case would be beneficial for storage and transport. Users often need to purchase a separate case to keep the tool safe and organized in their workshop.

Who Should Buy the Innova 3568 Digital Timing Light?

The Innova 3568 Digital Timing Light is a versatile tool, but it truly shines for specific groups of automotive enthusiasts and professionals. Its features and capabilities make it an ideal choice for those who demand precision and comprehensive diagnostic functions in their toolkit. Identifying who benefits most from this tool helps clarify its target market.

DIY Mechanics and Home Enthusiasts will find the Innova 3568 incredibly valuable for routine maintenance and more involved engine work. If you enjoy tuning up your own vehicle, diagnosing performance issues, or embarking on engine rebuilds, this tool provides the accuracy needed to set timing correctly, improving engine efficiency and preventing costly damage.

For Professional Technicians, the Innova 3568 serves as an excellent primary or backup timing light. Its reliability, multi-functionality, and robust construction make it suitable for daily use in a busy garage. The ability to quickly check RPM, dwell, and voltage alongside timing streamlines diagnostic processes, enhancing overall productivity.

Classic Car Enthusiasts and Restorers are another key demographic. Many vintage vehicles rely on distributor-based ignition systems where precise timing and dwell angle are absolutely critical for optimal performance and smooth operation. The Innova 3568’s digital accuracy and dwell function are indispensable for maintaining these beloved machines in top condition.

Performance Tuners and Racers will appreciate the advanced advance/retard function. When fine-tuning an engine for maximum power or specific track conditions, minute adjustments to ignition timing can make a significant difference. The digital precision of the Innova 3568 allows for these critical, repeatable adjustments, pushing engine performance to its limits.

Additionally, Automotive Students and Educators can greatly benefit from this tool. It offers a practical, hands-on way to understand the principles of ignition timing, engine diagnostics, and electrical system checks. Its clear digital display and multiple functions make it an excellent teaching aid for both theory and practical application in automotive courses.

Anyone who owns a vehicle with an adjustable ignition system, particularly older models or those with performance modifications, will find this tool to be a worthwhile investment. It empowers users to take control of their engine’s health, rather than relying solely on professional services for every timing check or adjustment.

Consider your level of mechanical involvement and the types of vehicles you work on. If your projects involve anything more complex than basic oil changes, or if you’re dealing with engines where timing is a critical factor, the Innova 3568 provides the necessary precision and diagnostic depth. It’s an investment in accurate diagnostics and long-term engine health.

Ultimately, the Innova 3568 is for those who value accuracy, comprehensive diagnostic capabilities, and durability in their automotive tools. It transcends the basic function of a timing light, offering a suite of features that cater to a wide range of users, from hobbyists to seasoned professionals, all seeking to maintain or optimize engine performance with confidence and precision. The robust design ensures it can withstand rigorous use, making it a reliable companion for years to come.

FAQ about Innova 3568 Timing Light

Here are some frequently asked questions about the Innova 3568 Digital Timing Light, providing further clarity on its use, features, and compatibility.

Q1: What is the primary function of the Innova 3568 Timing Light?

The primary function of the Innova 3568 is to accurately measure and adjust the ignition timing of internal combustion engines. This ensures that the spark plugs fire at the precise moment required for optimal engine performance, fuel efficiency, and reduced emissions. It helps prevent issues like pre-ignition or knocking.

Q2: Is the Innova 3568 compatible with both 2-stroke and 4-stroke engines?

Yes, the Innova 3568 Digital Timing Light is designed for compatibility with both 2-stroke and 4-stroke engines. Its versatile inductive pickup and advanced circuitry allow it to accurately read ignition signals from a wide array of engine types, including automotive, marine, and small engine applications.

Q3: How do I connect the Innova 3568 to my vehicle?

Connecting the Innova 3568 is straightforward. You attach the red and black power clamps to the vehicle’s 12V battery terminals (red to positive, black to negative). Then, clamp the inductive pickup onto the spark plug wire for cylinder number one. Ensure the arrow on the pickup points towards the spark plug for correct signal detection.

Q4: Can the Innova 3568 measure RPM and voltage?

Absolutely. One of the key advantages of the Innova 3568 is its multi-functional design. It can accurately measure engine RPM (revolutions per minute) and also display the vehicle’s battery voltage. These additional diagnostic capabilities provide a more comprehensive view of the engine’s operational status.

Q5: Is it suitable for classic cars with points ignition systems?

Yes, the Innova 3568 is highly suitable for classic cars, especially those with contact breaker point ignition systems. Its built-in dwell measurement function is crucial for setting the dwell angle accurately, which is essential for proper coil saturation and spark intensity in these older ignition setups.

Q6: What makes a digital timing light like the Innova 3568 better than an analog one?

Digital timing lights offer several advantages over analog models. They provide precise numerical readings, eliminating the potential for human error in interpreting physical scales. They often include additional diagnostic functions like RPM, dwell, and voltage, offering more value and versatility. Their bright digital displays are also easier to read in various conditions.

Q7: Are there any specific safety precautions when using this tool?

When using the Innova 3568, always ensure the engine is off before connecting or disconnecting the battery clamps. Be careful around moving engine parts (belts, fans) and hot surfaces. Wear appropriate personal protective equipment, such as safety glasses, and follow the vehicle manufacturer’s specific instructions for timing adjustment.

Q8: How accurate is the timing measurement on the Innova 3568 Timing Light?

The Innova 3568 is known for its high accuracy in timing measurements. Its digital display provides readings typically within +/- 0.5 degrees, offering the precision required for modern and classic engine tuning. This level of accuracy ensures that engine timing can be set exactly to manufacturer specifications for optimal performance.

Final Verdict

The Innova 3568 Timing Light stands as a testament to advanced automotive diagnostic technology, merging precision with multi-functionality. After a thorough examination of its features, performance, and user feedback, it’s clear that this digital timing light is an exceptional tool for a broad spectrum of users, from dedicated DIYers to seasoned professional mechanics.

Its core strength lies in its unwavering accuracy, which is paramount for correct ignition timing. The digital readout eliminates ambiguity, ensuring that every adjustment is made with confidence. This precision translates directly into improved engine performance, better fuel economy, and extended engine life, making it a valuable asset for any vehicle owner or technician.

The inclusion of RPM, dwell, and voltage measurements transforms the Innova 3568 from a simple timing light into a comprehensive diagnostic device. This versatility means fewer tools cluttering your workshop and more diagnostic power at your fingertips. It represents a smart investment, consolidating multiple diagnostic functions into one durable unit.

While the initial cost might be higher than basic analog models, the long-term value proposition of the Innova 3568 is undeniable. Its robust construction ensures durability, promising years of reliable service. The ergonomic design and clear display further enhance its user-friendliness, making complex tasks more accessible.

For those involved in classic car restoration, performance tuning, or simply maintaining their daily driver, the Innova 3568 offers the reliability and accuracy needed to ensure engines run at their peak. It simplifies the often-intimidating process of ignition timing, empowering users to perform critical adjustments with ease and confidence.

In conclusion, if you’re seeking an accurate, versatile, and durable digital timing light that offers more than just basic timing capabilities, the Innova 3568 is an outstanding choice. It’s a tool that not only meets but exceeds expectations, solidifying its position as an essential item in any serious automotive toolkit. Investing in this tool is investing in the longevity and optimal performance of your vehicles.
