JIC Cap Plug Set: Essential Hydraulic Fittings – Excellent Value

The JIC Cap Plug Set is an indispensable collection for anyone working with hydraulic systems, offering a comprehensive solution for sealing and protecting fluid lines. This 72-piece assortment, featuring 37-degree flare threads, is engineered from robust carbon steel, ensuring durability and reliable performance in demanding industrial environments. It provides essential components for maintenance, repair, and storage tasks, safeguarding your hydraulic infrastructure from dirt, moisture, and fluid loss.

JIC Cap Plug Set Overview

The JIC Cap Plug Set is a fundamental component in the world of hydraulic systems, designed to meet the rigorous demands of industrial, automotive, and heavy equipment applications. JIC, which stands for Joint Industry Council, refers to a specific type of flare fitting that utilizes a 37-degree flare seat to create a robust and leak-proof seal. This standard is widely recognized and adopted for its reliability and interchangeability.

Understanding the importance of a high-quality JIC Cap Plug Set begins with recognizing the critical role of hydraulic systems themselves. These systems rely on pressurized fluid to transmit power, making leak prevention and contamination control paramount. A single speck of dirt or an air bubble can compromise system efficiency, lead to equipment failure, and result in costly downtime.

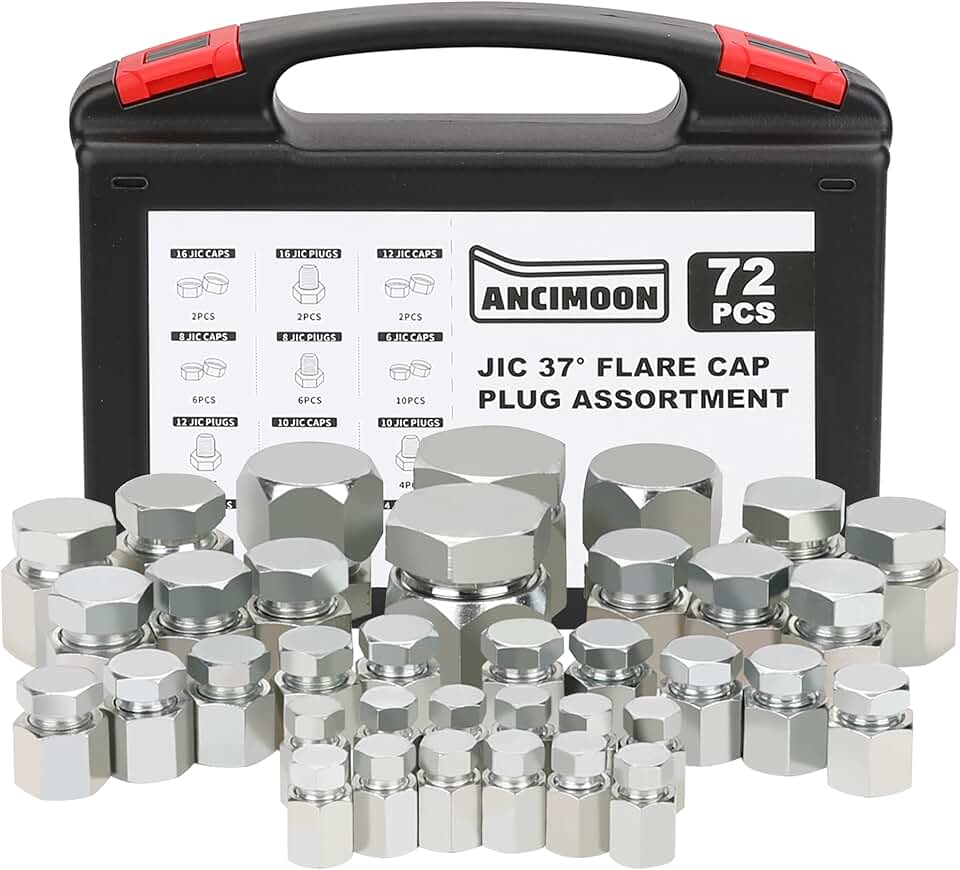

This particular set offers 72 pieces, encompassing a practical range of sizes from #4 to #16. These sizes correspond to common hose and tube dimensions found across various hydraulic setups. Having a diverse selection on hand ensures that technicians and maintenance personnel can quickly find the right cap or plug for almost any situation they encounter in the field or workshop.

The construction material, carbon steel, is a significant advantage. Carbon steel is renowned for its high tensile strength and durability, making these fittings resistant to the high pressures and mechanical stresses inherent in hydraulic applications. This material choice also provides a solid foundation for further protective treatments, such as zinc plating, which typically enhances corrosion resistance and extends the lifespan of the components.

In real-world scenarios, the utility of a JIC Cap Plug Set is immense. During routine maintenance, lines often need to be disconnected. Capping open lines prevents hydraulic fluid from leaking out, which is crucial for environmental protection and maintaining fluid levels. Simultaneously, plugging disconnected hoses keeps contaminants like dust, debris, and moisture from entering the system, preserving the integrity of sensitive hydraulic components such as pumps and valves.

Consider a situation where a hydraulic hose on heavy machinery ruptures. While waiting for a replacement, capping the open ports on the pump and cylinder, and plugging the ends of the damaged hose, can prevent significant fluid loss and contamination of the entire system. This proactive measure saves time, money, and potential environmental hazards. It also ensures that once the new hose arrives, the system can be reconnected without introducing new problems.

Beyond emergency repairs, these sets are invaluable for equipment storage and transport. When machinery is decommissioned or shipped, capping and plugging all open hydraulic connections prevent fluid drainage during transit and protect the internal components from exposure to the elements. This practice maintains the equipment’s readiness for future use and reduces setup time upon arrival.

The 37-degree flare design, a hallmark of JIC fittings, provides a metal-to-metal seal that is highly effective under various pressure and temperature conditions. This design ensures compatibility with other JIC-standard components, allowing for seamless integration into existing hydraulic circuits. For more detailed information on JIC fitting standards, you can refer to authoritative sources like Wikipedia’s JIC fitting page.

Compared to other fitting types, such as NPT (National Pipe Taper) or AN (Army-Navy) fittings, JIC offers distinct advantages for specific applications. While NPT relies on tapered threads and sealant for a seal, JIC’s flare design provides a more reliable and reusable connection for high-pressure fluid transfer. AN fittings are very similar to JIC, often interchangeable in terms of sealing surface, but typically adhere to stricter aerospace standards for materials and tolerances, making JIC a more common industrial choice.

Ultimately, a quality JIC Cap Plug Set is an investment in the longevity and efficiency of hydraulic equipment. It minimizes downtime, reduces maintenance costs, and ensures safer operation by preventing leaks and contamination. The comprehensive nature of this 72-piece set makes it a versatile asset for any professional or enthusiast dealing with hydraulic systems.

JIC Cap Plug Set Key Features & Specs

The JIC Cap Plug Set distinguishes itself through several key features and specifications that make it a highly effective and reliable choice for hydraulic applications. Understanding these details provides insight into its performance and value in various operational contexts.

Firstly, the most prominent feature is its comprehensive size assortment. This 72-piece set includes a practical selection of JIC sizes, specifically #4, #6, #8, #10, #12, and #16. Each size is crucial for specific applications within hydraulic systems. For instance, #4 (7/16-20 thread) and #6 (9/16-18 thread) are commonly found on smaller hydraulic cylinders, pilot lines, and auxiliary circuits.

Sizes #8 (3/4-16 thread) and #10 (7/8-14 thread) are typical for medium-duty hydraulic lines on industrial machinery or agricultural equipment. Larger sizes like #12 (1-1/16-12 thread) and #16 (1-5/16-12 thread) cater to main hydraulic lines, pumps, and larger valves where higher flow rates and pressures are common.

The inclusion of both caps and plugs across these sizes is critical. Caps are used to seal off external threads on components like pumps, valves, or cylinders, preventing fluid egress and contamination ingress. Plugs, conversely, are designed to seal off internal threads of disconnected hoses or tubes, protecting the fluid path from environmental elements and maintaining cleanliness within the line. This dual functionality ensures complete system protection during maintenance, storage, or transport.

Secondly, the material quality is paramount for hydraulic fittings. This set is crafted from carbon steel, a material celebrated for its exceptional strength and durability. Carbon steel can withstand the high operating pressures and vibrations common in hydraulic systems without deforming or failing. This inherent robustness contributes significantly to the longevity and reliability of the caps and plugs, even in harsh industrial environments.

While not explicitly stated, carbon steel hydraulic fittings are typically finished with a protective coating, such as zinc plating. This plating adds a crucial layer of corrosion resistance, protecting the steel from rust and oxidation, especially when exposed to moisture, chemicals, or outdoor conditions. The combination of strong base material and protective finish ensures that these components remain functional and visually sound over extended periods of use.

Thirdly, the 37-degree flare design is a defining characteristic of JIC fittings and a key feature of this set. This specific angle creates a metal-to-metal seal when a JIC fitting is tightened against a corresponding JIC connection. The flare compresses against the seat, forming a tight, leak-resistant barrier without the need for additional O-rings or sealants, which can degrade over time or be sensitive to fluid types. This design makes JIC connections highly reliable and easily reusable, provided the flare surfaces remain undamaged.

The precision of this 37-degree flare is essential for ensuring interchangeability and a secure fit with other JIC-standard components from various manufacturers. This standardization simplifies inventory management and repair processes, as technicians can confidently combine components knowing they will form a compatible and effective seal. The consistent angle across all sizes in the set ensures uniform sealing performance.

Finally, the quantity of 72 pieces provides ample supply for most workshops and field service needs. This generous count minimizes the need for frequent reordering and ensures that a suitable cap or plug is always available when required. Having a ready supply is particularly beneficial for large-scale projects or in situations where multiple hydraulic lines need simultaneous protection. For example, during a major overhaul of an excavator, dozens of lines might need to be capped or plugged temporarily.

The practical application of these features extends to various sectors. In manufacturing, they protect hydraulic presses and robotic arms during recalibration. In agriculture, they safeguard tractor implements during seasonal storage. In construction, they are vital for maintaining the integrity of excavators, loaders, and cranes. The ease of installation and removal, coupled with their reusability, makes this JIC Cap Plug Set a highly practical and cost-effective solution for preventing fluid loss, maintaining system cleanliness, and ultimately extending the life of valuable hydraulic equipment. This set provides a robust and reliable solution for managing hydraulic connections effectively.

Pros & Cons

Evaluating any product thoroughly requires a balanced look at both its strengths and weaknesses. The JIC Cap Plug Set, while highly beneficial for hydraulic applications, also has certain aspects that users should consider. Here’s a detailed breakdown of its pros and cons.

Pros:

• Extensive Size Range for Versatility: The set includes 72 pieces covering JIC sizes #4, #6, #8, #10, #12, and #16. This wide assortment ensures that most common hydraulic line sizes encountered in industrial, automotive, and heavy equipment applications are covered. Technicians won’t be left searching for an obscure size, making it a highly practical and ready-to-use solution for diverse tasks from small pilot lines to larger main circuits.
• Durable Carbon Steel Construction: Crafted from high-strength carbon steel, these caps and plugs are built to last. This material offers superior resistance to high pressures, mechanical stress, and vibrations inherent in hydraulic systems. The robust construction ensures that the fittings maintain their integrity and sealing capability over repeated use and in challenging environments, significantly contributing to their longevity and reliability.
• Reliable 37-Degree Flare Sealing: The inherent design of JIC fittings, utilizing a 37-degree metal-to-metal flare seal, is highly effective in preventing leaks. This design ensures a tight and secure connection without the need for additional O-rings or thread sealants, which can degrade or fail. The reusability of this sealing method, provided the flare surfaces are undamaged, offers a distinct advantage in terms of maintenance efficiency and cost savings over time.
• Cost-Effective Solution for Contamination Control: Investing in a comprehensive JIC Cap Plug Set is a highly economical way to protect expensive hydraulic components. By preventing fluid loss and blocking the ingress of contaminants like dirt, moisture, and debris into open lines and ports, this set helps to avoid costly repairs, premature component wear, and downtime. The upfront cost is easily offset by the savings in maintenance and extended equipment life.
• Essential for Maintenance, Storage, and Transport: These caps and plugs are indispensable tools for various operational scenarios. During routine maintenance, they prevent spills and keep systems clean. For equipment storage, they seal off hydraulic circuits, protecting them from environmental degradation. During transport, they secure fluid within lines and prevent external damage to delicate port threads, ensuring equipment arrives ready for service.

Cons:

• No Dedicated Storage Case: One notable drawback is the absence of a purpose-built, organized storage case. While the fittings themselves are high quality, they typically come in bulk packaging. This means users will need to provide their own compartmentalized box or tray to keep the various sizes sorted and easily accessible. Without proper organization, finding the correct cap or plug can be time-consuming, especially in a busy workshop or field environment.
• Specific to JIC Standard: This set is exclusively designed for JIC (37-degree flare) hydraulic fittings. While JIC is a very common standard, it is not universal. Users working with other hydraulic fitting types, such as NPT (National Pipe Taper), BSPP (British Standard Parallel Pipe), ORFS (O-Ring Face Seal), or DIN (German Industrial Standard) connections, will find these caps and plugs incompatible. This specificity means additional sets may be required for diverse hydraulic systems.
• May Not Include Less Common, Larger Sizes: While the set covers a good range up to #16, some industrial applications utilize larger JIC sizes, such as #20, #24, or even #32, for extremely high flow or heavy-duty systems. This set does not include these larger, less common sizes. Users with very specialized or large-scale hydraulic machinery might need to source these specific larger caps and plugs separately, which could add to overall costs and complexity.
• Weight and Bulk for Field Service if Not Organized: Given that the set contains 72 carbon steel pieces, it has a significant weight and bulk if not properly organized. For technicians performing field service, carrying a loose assortment of these heavy fittings can be cumbersome. Proper organization into a durable, portable kit is essential to maximize convenience and efficiency during mobile operations, which is an additional consideration for the end-user.

Who Should Buy the JIC Cap Plug Set?

The JIC Cap Plug Set is a highly specialized yet widely applicable product, making it an essential purchase for a distinct group of professionals and enthusiasts. Its utility stems from the critical need to protect hydraulic systems from contamination and fluid loss during various stages of equipment lifecycle. Identifying the primary beneficiaries of this set helps potential buyers understand its value proposition.

Firstly, hydraulic technicians and engineers are at the top of the list. These professionals regularly work on diagnosing, repairing, and maintaining complex hydraulic systems in diverse settings, from manufacturing plants to construction sites. A comprehensive set of JIC caps and plugs allows them to quickly seal off lines during component replacement, pressure testing, or system flushing, ensuring clean and efficient operations. It prevents spills and maintains system integrity during critical repair windows.

Secondly, heavy equipment operators and maintenance crews will find this set invaluable. Machinery like excavators, bulldozers, loaders, and agricultural equipment heavily relies on hydraulic power. When a hose ruptures or a component needs replacement in the field, having the right cap or plug on hand can prevent significant fluid loss, environmental contamination, and the ingress of dirt into the system. This quick response capability minimizes downtime and protects expensive hydraulic components from damage.

Thirdly, industrial maintenance professionals responsible for factory machinery, power generation equipment, or any industrial setup utilizing hydraulics will greatly benefit. These environments often have numerous hydraulic circuits that require regular inspection and maintenance. The JIC Cap Plug Set provides a standardized solution for isolating sections of a system or protecting ports during long-term storage of spare parts or decommissioned machinery.

Fourthly, DIY enthusiasts and small workshop owners who undertake their own hydraulic projects or repairs on farm equipment, older vehicles, or custom machinery will find this set to be a significant asset. While not professional technicians, their need for reliable contamination control is just as critical. The cost-effectiveness of a full set, compared to buying individual pieces, makes it an attractive option for hobbyists and small businesses.

Fifthly, equipment rental companies and service centers should consider this set a mandatory inventory item. When equipment is returned, serviced, or prepared for rental, hydraulic lines often need temporary sealing. This set ensures that all equipment leaving or entering their facility is protected, preventing fluid loss during transport and ensuring the cleanliness of hydraulic systems for the next user. It reflects a commitment to quality and professionalism.

Finally, anyone involved in the transportation or long-term storage of hydraulic components or machinery will find the JIC Cap Plug Set indispensable. Shipping equipment with open hydraulic ports is an invitation for contamination, fluid leaks, and potential damage to threads. Using these caps and plugs ensures that components arrive at their destination in pristine condition, ready for installation or immediate use, thereby preserving their value and functional integrity.

In essence, if your work or hobby involves any interaction with hydraulic systems that utilize JIC 37-degree flare fittings, this cap and plug set is a practical and protective investment. It provides peace of mind, reduces operational risks, and contributes to the longevity and efficiency of hydraulic equipment. Its comprehensive nature means you are prepared for a wide array of scenarios, making it a cornerstone tool for effective hydraulic management.

FAQ about JIC Cap Plug Set

This section addresses common questions regarding the JIC Cap Plug Set, providing detailed answers to help users better understand its function, compatibility, and application.

Q1: What does JIC stand for, and what is a JIC fitting?

A: JIC stands for “Joint Industry Council.” A JIC fitting is a type of flare fitting commonly used in hydraulic systems. It uses a 37-degree flared seating surface to create a metal-to-metal seal when tightened. This design ensures a robust, leak-proof connection that is highly reliable for high-pressure fluid transfer. The JIC standard ensures interchangeability among components from different manufacturers.

Q2: What is the significance of the 37-degree flare in these fittings?

A: The 37-degree flare is crucial because it dictates the sealing mechanism of JIC fittings. When the male and female JIC components are joined and tightened, the 37-degree flared end of the tube or hose fitting compresses against the 37-degree conical seat of the mating fitting. This compression creates a secure, leak-tight, metal-to-metal seal without the need for O-rings or thread sealants. This design is highly effective under various pressure and temperature conditions and allows for repeated connection and disconnection.

Q3: Are JIC fittings compatible with AN fittings?

A: JIC fittings are very similar to AN (Army-Navy) fittings in their 37-degree flare design. In many cases, JIC and AN fittings can be physically interchanged and will seal properly. However, AN fittings are typically manufactured to tighter tolerances and higher material specifications, often used in aerospace applications. While they may connect, it’s generally recommended to use fittings specifically designed for the intended application to ensure optimal performance and safety, especially in critical high-pressure systems. For industrial hydraulic applications, JIC is the standard.

Q4: What material are these JIC Cap Plug Set components made from, and why?

A: The components in this JIC Cap Plug Set are made from high-strength carbon steel. Carbon steel is chosen for its excellent mechanical properties, including high tensile strength, durability, and resistance to wear and fatigue. These characteristics are essential for hydraulic applications where fittings are subjected to high pressures, vibrations, and mechanical stresses. Carbon steel also provides a strong base for protective coatings, such as zinc plating, which further enhances corrosion resistance and extends the service life of the fittings.

Q5: How do I determine the correct JIC size for my hose or fitting?

A: JIC sizes are typically denoted by numbers (e.g., #4, #6, #8), which correspond to specific thread sizes and tube outer diameters. To determine the correct size, you can measure the thread diameter of your existing JIC fitting or port using calipers. For example, a #4 JIC fitting has a 7/16-20 thread, and a #8 JIC fitting has a 3/4-16 thread. Alternatively, reference a JIC sizing chart, which provides detailed dimensions for each dash size. The flare angle should also be visually confirmed as 37 degrees.

Q6: Can these JIC caps and plugs be reused?

A: Yes, JIC caps and plugs made of carbon steel are designed for reusability. The metal-to-metal flare seal does not rely on deformable seals that wear out with each use. However, it is crucial to inspect the sealing surfaces (the 37-degree flare) for any signs of damage, such as nicks, scratches, or deformation, before reuse. Any damage to the flare can compromise the seal and lead to leaks. Always ensure threads are clean and free of debris for proper engagement.

Q7: What are the common applications for this JIC Cap Plug Set?

A: This JIC Cap Plug Set is ideal for a wide range of applications across various industries. Common uses include: sealing open hydraulic lines during maintenance or repair of heavy machinery (excavators, loaders), industrial equipment (presses, robots), and agricultural vehicles (tractors, implements). They are also essential for protecting hydraulic ports and hoses during equipment transport, long-term storage of components, pressure testing circuits, and preventing fluid contamination in workshops or field service environments. They ensure system cleanliness and prevent fluid loss.

Q8: How do I properly install a JIC cap or plug to ensure a leak-proof seal?

A: Proper installation is key for a leak-proof seal. First, ensure both the cap/plug and the mating surface are clean and free of dirt, debris, or old fluid. Inspect the 37-degree flare surfaces for any damage. Hand-tighten the cap or plug to engage the threads smoothly, ensuring no cross-threading occurs. Once hand-tight, use a wrench to tighten it further, typically to a specified torque value if available, or until a firm, snug connection is made. Avoid over-tightening, as this can damage the flare or threads. The metal-to-metal contact of the flare creates the seal.

Final Verdict

The JIC Cap Plug Set is an undeniably valuable and highly effective solution for anyone regularly interacting with hydraulic systems. Its comprehensive assortment of 72 pieces, spanning essential JIC sizes from #4 to #16, ensures that you are well-prepared for a vast majority of maintenance, repair, and storage scenarios. The robust carbon steel construction guarantees exceptional durability and reliability, capable of withstanding the demanding pressures and environments typical of hydraulic applications.

The core strength of this set lies in its adherence to the JIC 37-degree flare standard, providing a consistently reliable and leak-proof metal-to-metal seal. This design not only prevents costly fluid loss but, more critically, protects sensitive hydraulic components from contamination by dirt, moisture, and debris. Such proactive protection can significantly extend the lifespan of expensive machinery and reduce unforeseen downtime, translating into substantial savings over time.

While the absence of a dedicated storage case is a minor inconvenience, it is easily remedied with a separate organizer. This small consideration does not detract from the immense practical value and performance offered by the set. For hydraulic technicians, heavy equipment operators, industrial maintenance crews, and even dedicated DIY enthusiasts, this JIC Cap Plug Set represents an intelligent investment.

It is an essential toolkit addition that promotes cleaner, safer, and more efficient hydraulic operations. The excellent value provided by this extensive collection of durable, reliable fittings makes it a highly recommended product for ensuring the integrity and longevity of your hydraulic systems. Don’t compromise on the protection of your fluid power infrastructure.
