Mitutoyo Digimatic Caliper: Ultimate Precision – Worth It

The world of precision measurement demands tools that are not only accurate but also reliable and durable. The Mitutoyo Digimatic Caliper, specifically the 500-196-30 model, stands as a testament to this demand, offering an advanced solution for professionals and enthusiasts alike. This comprehensive review will delve deep into its capabilities, features, and overall value, helping you decide if this high-precision instrument is the right addition to your toolkit.

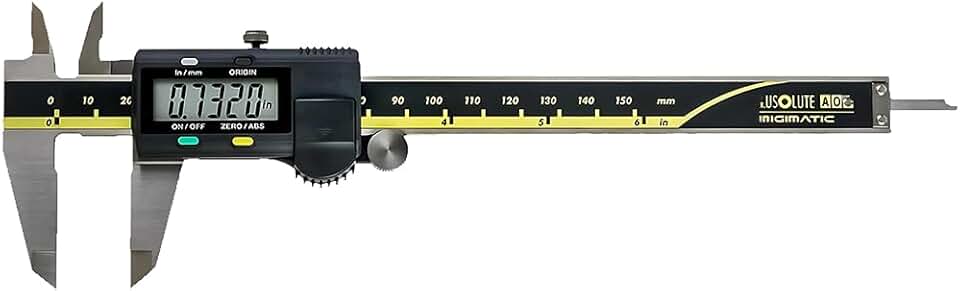

Mitutoyo Digimatic Caliper Overview

Mitutoyo is a name synonymous with precision in the metrology world, and the 500-196-30 Mitutoyo Digimatic Caliper perfectly embodies this reputation. Originating from Japan, Mitutoyo has been a leading manufacturer of measuring instruments for decades, setting industry standards for accuracy and quality. Their tools are trusted in critical applications across manufacturing, engineering, and scientific fields.

A digital caliper is an indispensable tool for anyone requiring accurate linear measurements, both internal and external, as well as depth and step measurements. Unlike traditional vernier or dial calipers, digital models offer instant, unambiguous readings on an LCD screen, significantly reducing the potential for reading errors. This makes them ideal for fast-paced environments where precision cannot be compromised.

The 500-196-30 model is particularly noteworthy due to its 6-inch (150mm) measuring range, making it suitable for a wide array of common tasks. This size offers a balance between versatility and portability, fitting comfortably in a toolbox or on a workbench. It’s often considered a workhorse for general workshop use, quality control inspections, and even intricate crafting.

What truly sets this Mitutoyo Digimatic Caliper apart is its commitment to high-precision measurement. With a resolution of .0005″/0.01mm, it can detect minute differences in dimensions, which is crucial for machining parts to tight tolerances or verifying the accuracy of components. This level of detail is often required in aerospace, automotive, and medical device manufacturing.

The caliper’s design focuses on user experience and long-term reliability. Its robust stainless steel construction ensures it can withstand the rigors of a demanding industrial environment, resisting corrosion and wear over time. The smooth slider mechanism, characteristic of Mitutoyo instruments, allows for effortless and consistent movement, contributing to measurement repeatability and reducing user fatigue.

Understanding the context of this tool is vital. In a market flooded with budget-friendly digital calipers, the Mitutoyo 500-196-30 positions itself as a premium option. It caters to users who prioritize unwavering accuracy and dependable performance over a lower initial cost. This investment often pays off in reduced scrap, improved product quality, and enhanced operational efficiency in the long run.

The digital interface, while standard for this category, is exceptionally well-executed on this model. The large, clear LCD display provides readings that are easy to interpret, even in less-than-ideal lighting conditions. This reduces eye strain and minimizes the chance of misreading a value, a common pitfall with analog instruments or lower-quality digital screens.

Furthermore, the Mitutoyo Digimatic Caliper is not just about raw specifications; it’s about the trust and confidence that comes with the Mitutoyo brand. Professionals worldwide rely on these tools for their daily operations, knowing they will deliver consistent and accurate results every time. This reputation is built on decades of innovation, rigorous quality control, and a deep understanding of metrology principles.

The ability to switch between imperial and metric units with a simple button press adds to its versatility, making it suitable for global applications and diverse project requirements. This feature is particularly useful when working with international designs or specifications that might use different measurement systems. It streamlines workflow and reduces the need for manual conversions, which can introduce errors.

In essence, the Mitutoyo 500-196-30 is more than just a measuring device; it’s a precision instrument engineered for those who cannot afford compromise on accuracy. Its blend of advanced technology, durable construction, and user-friendly design makes it a standout choice in the digital caliper market, embodying the high standards expected from a top-tier metrology tool. This comprehensive overview sets the stage for a deeper dive into its specific features and performance.

Mitutoyo Digimatic Caliper Key Features & Specs

The Mitutoyo Digimatic Caliper 500-196-30 is engineered with several critical features that contribute to its superior performance and reliability. Understanding these specifications is key to appreciating its value in precision measurement applications. Each component is designed to deliver consistent and accurate results, distinguishing it from lesser quality alternatives.

One of the most significant innovations in this caliper is the AOS (Advanced Onsite Sensor) Inductive System. This patented technology significantly improves the caliper’s resistance to environmental contaminants such as dirt, oil, and water. Unlike traditional capacitive sensors that can be affected by debris, the AOS system maintains its accuracy and reliability even in challenging workshop conditions, ensuring consistent readings over time.

The resolution of the Mitutoyo Digimatic Caliper is a precise .0005 inches or 0.01 millimeters. This fine resolution allows users to detect minute variations in dimensions, which is crucial for quality control in manufacturing and machining. For many applications, this level of detail is non-negotiable, providing the confidence needed for critical measurements.

Accuracy is paramount for any measuring tool, and Mitutoyo delivers with a specified accuracy of +/- .001 inches (0.02mm) for its 6-inch models. This stringent accuracy specification means that users can trust the readings for critical dimensions, reducing errors and ensuring part conformance. Such precision is a hallmark of Mitutoyo’s engineering excellence.

Constructed from high-grade stainless steel, the caliper offers exceptional durability and resistance to wear and corrosion. This robust material choice ensures the tool maintains its structural integrity and measurement stability over years of heavy use. The quality of materials directly impacts the longevity and consistent performance of a precision instrument.

The caliper features a measuring range of 0 to 6 inches (0 to 150mm), making it a versatile tool for a wide variety of tasks. This common range covers the majority of parts and components encountered in general engineering, woodworking, and metalworking. Its compact size also makes it easy to handle and maneuver.

The large, clear LCD display is another standout feature, providing instant and unambiguous readings. The digital readout eliminates the parallax errors often associated with vernier scales and the potential for misinterpretation with dial indicators. The digits are sharp and easy to read, even in varying light conditions, which enhances user comfort and reduces the likelihood of human error during data recording.

An essential operational feature is the Origin (ABS) function. This allows the user to set the absolute origin point once, and it retains this setting even after the caliper is turned off. This means that when the caliper is turned on again, it immediately displays its actual position from the origin, eliminating the need to re-zero for every measurement and significantly speeding up repetitive tasks.

The caliper also includes a Zero/ABS button, which enables both incremental and absolute measurement modes. In incremental mode, the user can zero the display at any point, allowing for comparison measurements or measuring differences between features. The ability to switch between these modes adds immense flexibility to its application.

Powering the device is a single SR44 silver oxide battery, which typically provides approximately 3.5 years of continuous use under normal operating conditions. This extended battery life minimizes downtime and ensures the caliper is ready for use when needed, though regular checks are always recommended for critical tools.

The smooth and precise action of the slider is a testament to Mitutoyo’s manufacturing quality. The fine-ground measuring surfaces ensure minimal friction and consistent contact with the workpiece, contributing to repeatable and accurate measurements. This tactile feedback is often overlooked but is crucial for consistent user interaction.

While this particular model (500-196-30) does not typically feature data output capabilities, other Mitutoyo Digimatic calipers in the series do. This model focuses on standalone, direct measurement. Users needing data output for statistical process control (SPC) or other digital logging would need to explore other Digimatic models with SPC output ports.

Overall, the Mitutoyo 500-196-30 Digimatic Caliper combines robust construction, advanced sensor technology, and user-centric design to deliver an exceptionally precise and reliable measuring experience. Its features are carefully chosen to meet the high demands of professional environments where accuracy and consistency are paramount. This detailed look at its specifications highlights why it commands a premium position in the market.

Pros & Cons

Evaluating any precision tool involves a careful consideration of its strengths and weaknesses. The Mitutoyo Digimatic Caliper 500-196-30, while highly praised, is no exception. Understanding these aspects will help potential buyers make an informed decision based on their specific needs and budget.

Pros of the Mitutoyo Digimatic Caliper:

• Unmatched Accuracy and Resolution: The primary advantage of the Mitutoyo 500-196-30 is its outstanding accuracy of +/- .001″ (0.02mm) and a fine resolution of .0005″ (0.01mm). This level of precision is critical for professional applications where tight tolerances are essential, such as in machining, tooling, and quality control. It provides confidence in every measurement taken.
• Advanced Onsite Sensor (AOS) System: Mitutoyo’s proprietary AOS inductive sensor is a game-changer for reliability. It makes the caliper highly resistant to contamination from coolant, oil, dirt, and dust, which are common in workshop environments. This resilience ensures consistent performance and extends the lifespan of the instrument, reducing maintenance needs and costly recalibrations.
• Exceptional Durability and Build Quality: Crafted from high-quality hardened stainless steel, this caliper is built to last. Its robust construction can withstand the rigors of daily industrial use, resisting wear and maintaining its calibration over time. The smooth, precise slider movement is a testament to superior engineering and manufacturing standards.
• Clear and Easy-to-Read Digital Display: The large LCD screen provides instant, unambiguous readings in both imperial and metric units. This clarity minimizes the potential for reading errors, which can be a significant issue with analog calipers, and improves overall efficiency. The display is bright and legible, even under various lighting conditions.
• Reliable Origin (ABS) Function: The ability to set an absolute origin and retain it even after power-off is a major convenience. This feature eliminates the need to re-zero the caliper for every new set of measurements, saving time and reducing the chances of errors, particularly in repetitive tasks or when taking comparative measurements.
• Trusted Brand Reputation: Mitutoyo has a global reputation for producing high-quality, reliable metrology instruments. Investing in a Mitutoyo tool means investing in a product backed by decades of expertise, rigorous quality control, and widespread industry trust. This brand confidence is invaluable for professionals.
• Smooth and Consistent Slider Action: The tactile experience of using a Mitutoyo caliper is often highlighted by users. The slider moves with remarkable smoothness and consistency, allowing for precise positioning and delicate measurements without binding or sticking. This contributes significantly to repeatable results and user comfort during extended use.

Cons of the Mitutoyo Digimatic Caliper:

• Higher Price Point: The most significant drawback for many potential buyers is the cost. The Mitutoyo 500-196-30 is considerably more expensive than many generic or entry-level digital calipers on the market. While justified by its quality and features, this price can be a barrier for hobbyists or those with less demanding needs.
• Battery Dependence and Life Concerns: Like all digital calipers, this model relies on a battery (SR44). While battery life is generally good (around 3.5 years), it’s still a consumable component that will eventually need replacement. Forgetting to turn it off or prolonged storage can lead to unexpected battery drain, potentially interrupting work.
• Lack of Advanced Data Output: This specific model (500-196-30) does not come equipped with an SPC (Statistical Process Control) data output port. For users who require direct data transfer to a computer for analysis, quality control logging, or automated systems, this model might not be suitable. Other Digimatic calipers in Mitutoyo’s lineup do offer this feature, but at a higher cost.
• Potential for User Error with Digital Features: While the digital display simplifies reading, users accustomed to traditional vernier or dial calipers might initially find the digital interface and its specific functions (like ABS/INC mode switching) to require a slight learning curve. Though generally intuitive, it’s a departure from purely mechanical operation.

In summary, the Mitutoyo Digimatic Caliper offers unparalleled precision, durability, and reliability, making it a top choice for professionals. However, these benefits come at a higher cost, and its battery dependence and lack of data output on this specific model are considerations. The decision ultimately hinges on the user’s specific requirements for accuracy and their budget.

Who Should Buy the Mitutoyo Digimatic Caliper?

The Mitutoyo Digimatic Caliper 500-196-30 is not just any measuring tool; it’s a specialized instrument designed for individuals and industries where precision is paramount. Its robust features and high accuracy make it an ideal choice for a diverse range of professionals and serious hobbyists. Understanding its target audience helps clarify its value proposition.

Machinists and CNC Operators: For those working in machine shops, whether operating manual mills and lathes or programming CNC machines, exact measurements are critical. The Mitutoyo Digimatic Caliper provides the necessary .0005″/.01mm resolution to ensure parts meet tight specifications, reducing scrap and rework. Its reliable AOS sensor also thrives in oily and dusty shop environments.

Quality Control Inspectors: In manufacturing, quality control is the gatekeeper of product integrity. Inspectors rely on highly accurate and repeatable measurements to verify product dimensions against engineering drawings. The Mitutoyo 500-196-30 offers the precision and consistency required for these critical checks, ensuring compliance and preventing defective products from reaching customers.

Engineers and Product Designers: During prototyping and product development phases, engineers need to take precise measurements of components and assemblies. The reliability and accuracy of this caliper aid in iterative design, ensuring that theoretical models translate accurately into physical parts. It’s an essential tool for verifying dimensions before moving to mass production.

Tool and Die Makers: Crafting custom tools, dies, and molds demands meticulous attention to detail. The smallest deviation can impact the functionality and longevity of the final product. A Mitutoyo Digimatic Caliper provides the fine resolution needed to achieve the exacting standards required in this specialized field.

Automotive and Aerospace Technicians: When working on critical components in these industries, precision is directly linked to safety and performance. Measuring engine parts, aerospace components, or specialized fittings requires tools that offer unwavering accuracy. The Mitutoyo caliper meets these stringent demands, helping ensure components fit correctly and function as intended.

Jewelers and Watchmakers: For those working with intricate mechanisms and tiny components, the 6-inch Mitutoyo Digimatic Caliper offers sufficient range and exceptional precision. Measuring small parts for watches, rings, or custom jewelry requires a tool that can provide highly detailed and consistent readings, which this caliper excels at.

Advanced DIY Enthusiasts and Hobbyists: While it might be an investment, serious hobbyists in fields like model making, custom fabrication, or high-end woodworking who demand professional-grade results will appreciate the Mitutoyo. For projects requiring exact fits and finishes, the precision offered by this caliper can elevate the quality of their work significantly.

Educators and Students in Technical Fields: For vocational schools, engineering programs, or technical colleges, having high-quality instruments like the Mitutoyo Digimatic Caliper is essential for teaching proper measurement techniques. Students learn the importance of precision with tools that accurately reflect industry standards, preparing them for professional careers.

Anyone Prioritizing Long-Term Value and Reliability: While the initial cost is higher, the longevity and consistent performance of a Mitutoyo caliper often translate to lower ownership costs over time. Fewer replacements, less frequent calibration issues, and reliable measurements contribute to overall efficiency and cost savings in the long run. It’s an investment in enduring quality.

This caliper is particularly suited for environments where environmental factors like dust, coolant, or oil are present. The AOS system ensures that these contaminants do not compromise measurement accuracy, a common problem with less robust digital calipers. This makes it a reliable choice for busy workshops and industrial settings where cleanliness cannot always be perfectly maintained.

Ultimately, the Mitutoyo Digimatic Caliper is for those who understand that true precision requires a superior tool. It’s for users who value accuracy, durability, and the peace of mind that comes from using an industry-leading brand. If your work demands consistent, highly accurate measurements and you are prepared to invest in quality, this caliper is an excellent choice.

For more information on Mitutoyo’s range of precision instruments, you can visit their official website: Mitutoyo USA. To learn more about calipers in general, consider visiting the Wikipedia page: Caliper on Wikipedia.

FAQ about Mitutoyo Digimatic Caliper

This section addresses common questions about the Mitutoyo Digimatic Caliper 500-196-30, providing detailed answers to help users better understand its functionality, maintenance, and benefits.

Q1: What does the AOS (Advanced Onsite Sensor) system do?

A1: The AOS system is a patented inductive sensor technology developed by Mitutoyo. It significantly enhances the caliper’s resistance to environmental contaminants such as dirt, oil, and water. Unlike traditional capacitive sensors, which can be easily affected by debris causing inaccurate readings, the AOS system maintains its precision and reliability even in harsh workshop conditions. This ensures stable and consistent measurements over time, reducing errors and the need for frequent cleaning or recalibration.

Q2: How do I maintain my Mitutoyo Digimatic Caliper for optimal performance?

A2: Proper maintenance is crucial for any precision instrument. Regularly clean the measuring surfaces and the slider beam with a clean, lint-free cloth, and a mild, non-abrasive cleaner if necessary. Avoid using solvents that could damage the display or seals. Store the caliper in its protective case when not in use to prevent dust accumulation and accidental damage. Periodically check and replace the battery to ensure continuous operation.

Q3: Is the Mitutoyo 500-196-30 waterproof or water-resistant?

A3: While the AOS system provides excellent resistance to environmental factors, including splashes of coolant or water, the 500-196-30 model is not fully waterproof in the sense of being submersible. It is designed to withstand typical workshop exposure to fluids and dust. For applications requiring full waterproofing, Mitutoyo offers IP67-rated Digimatic calipers that are fully protected against dust and temporary immersion in water.

Q4: How accurate is the Mitutoyo Digimatic Caliper compared to a dial or vernier caliper?

A4: The Mitutoyo Digimatic Caliper 500-196-30 offers an accuracy of +/- .001 inches (0.02mm) and a resolution of .0005 inches (0.01mm). This level of accuracy is generally superior or comparable to high-quality dial and vernier calipers. The main advantage of the digital model is the clear, unambiguous readout, which eliminates potential reading errors common with analog scales, especially for less experienced users. This makes digital calipers faster and more reliable for many applications.

Q5: What type of battery does it use, and how long does it typically last?

A5: The Mitutoyo Digimatic Caliper uses a single SR44 silver oxide battery. Under normal operating conditions, this battery is designed to provide approximately 3.5 years of continuous use. It’s advisable to keep a spare battery on hand, especially for critical tasks, and to replace it proactively rather than waiting for it to die during a measurement session. The long battery life is a significant advantage, reducing the frequency of changes.

Q6: Can this caliper measure in both inches and millimeters?

A6: Yes, absolutely. The Mitutoyo 500-196-30 features a convenient button that allows for instant switching between imperial (inches) and metric (millimeters) units. This dual-unit capability makes it highly versatile for users working with different standards or international designs, eliminating the need for manual conversions and potential errors.

Q7: Why is the Mitutoyo Digimatic Caliper more expensive than other digital calipers?

A7: The higher price of the Mitutoyo Digimatic Caliper is attributed to several factors: the brand’s long-standing reputation for precision and quality, the proprietary AOS inductive sensor system which offers superior contamination resistance, the use of high-grade hardened stainless steel for durability, and stringent manufacturing tolerances. These elements combine to provide unmatched accuracy, reliability, and longevity, making it a worthwhile investment for professionals who demand the best performance.

Q8: Does this model have data output capabilities for SPC?

A8: The Mitutoyo 500-196-30 model specifically does not include an SPC (Statistical Process Control) data output port. If you require the ability to connect your caliper to a computer or data collection system for statistical analysis or automated logging, you would need to look for other Mitutoyo Digimatic models that feature an SPC output, often denoted by a specific suffix in their model number (e.g., models with a ‘C’ or ‘D’ in their part number). This model is designed for direct, standalone measurement readings.

Final Verdict

After an in-depth exploration of its features, performance, and target audience, the Mitutoyo Digimatic Caliper 500-196-30 stands out as an exceptional precision measuring instrument. It embodies Mitutoyo’s unwavering commitment to accuracy, durability, and reliability, making it a benchmark in the world of metrology tools. While its price point might be higher than many alternatives, the value it delivers in terms of performance and longevity more than justifies the investment for the right user.

The core strength of this caliper lies in its ability to provide consistently accurate measurements with a resolution of .0005″/.01mm. This precision is not just a number on a spec sheet; it translates directly into tangible benefits in critical applications, reducing errors, minimizing material waste, and ensuring the highest quality in manufacturing and fabrication processes. The confidence that comes from reliable measurements is invaluable.

The innovative AOS (Advanced Onsite Sensor) system is a significant differentiator, offering unparalleled resistance to shop floor contaminants. This resilience ensures that the caliper performs flawlessly even in challenging environments where dust, oil, and coolant are prevalent. It means less downtime for cleaning and calibration, and more time for productive work, making it a true workhorse.

Its robust stainless steel construction guarantees exceptional durability, promising years of dependable service. The smooth slider action and clear digital display further enhance the user experience, making measurements quick, easy, and error-free. The convenience of the ABS (Absolute) function ensures that the caliper is always ready for immediate use, retaining its origin point even after being powered off.

While the absence of an SPC data output port on this specific model might be a consideration for some high-volume quality control operations, for the vast majority of users who require direct, precise readings, it is not a significant drawback. The focus here is on fundamental, uncompromised accuracy and ease of use in a standalone capacity.

In conclusion, the Mitutoyo Digimatic Caliper 500-196-30 is an outstanding choice for machinists, engineers, quality control professionals, and serious hobbyists who demand the highest level of precision and reliability from their measuring tools. It’s an investment in quality that pays dividends through improved accuracy, enhanced efficiency, and the peace of mind that comes from using a trusted, industry-leading instrument. If your work demands nothing less than perfection, this caliper is undoubtedly worth the investment.
