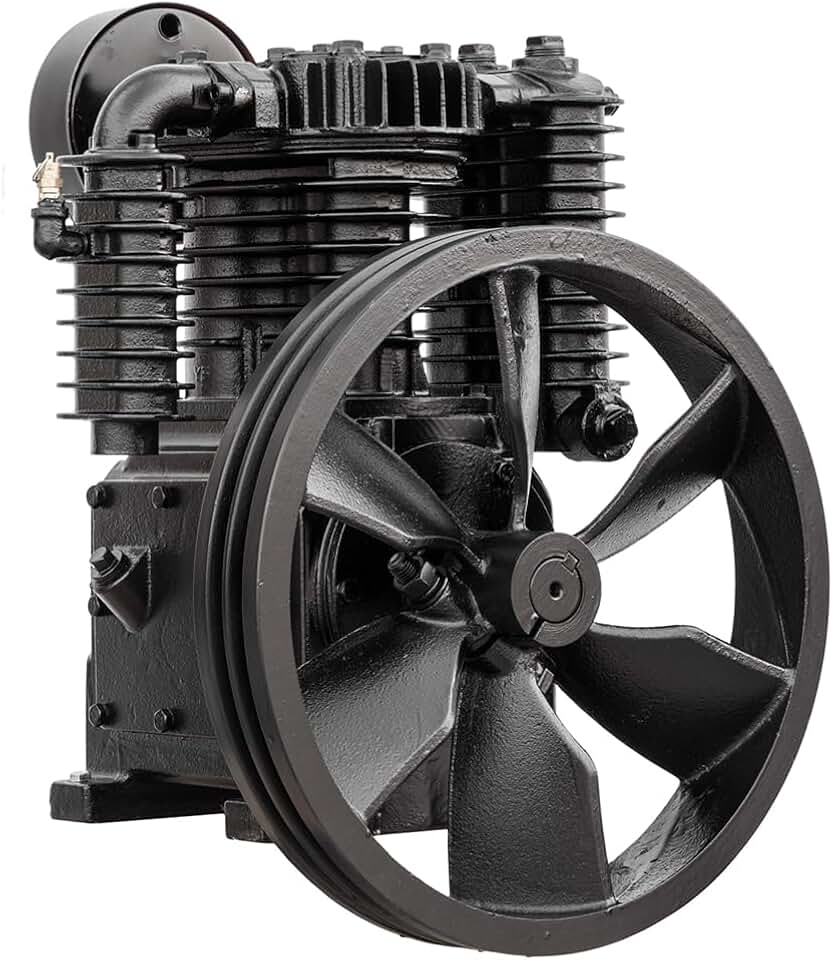

5 HP Air Compressor Pump: Powerful Exceptional Choice

The 5 HP Air Compressor Pump is a robust and essential component for anyone looking to upgrade or repair their heavy-duty air compression system. This particular model, a two-stage, two-cylinder cast iron unit, is specifically designed to deliver consistent, high-performance airflow for demanding industrial and automotive applications.

5 HP Air Compressor Pump Overview

The 5 HP Air Compressor Pump, specifically the CS1105T model, represents a significant investment for workshops, garages, and industrial settings that rely on a consistent and powerful supply of compressed air. This unit is not a standalone air compressor but rather the heart of a high-capacity system, designed to replace an existing pump or serve as the core for a custom build.

Its primary function is to compress atmospheric air and deliver it to an air receiver tank, providing the pressure necessary to operate a wide range of pneumatic tools and machinery. The ‘5 HP’ designation indicates its substantial power handling capability, signifying it can be paired with a robust motor to achieve high performance.

As a two-stage air compressor pump, it compresses air in two distinct phases, offering several advantages over single-stage designs. This process allows for higher pressures and significantly cooler operation, which contributes to the longevity of the pump and the quality of the compressed air. This design choice is critical for applications requiring sustained high pressure.

The construction material, cast iron, is a hallmark of durability and heat dissipation in air compressor pumps. Cast iron cylinders and crankcases are known for their ability to withstand intense operational heat and pressure, ensuring a longer operational lifespan and reducing wear and tear. This makes the CS1105T a reliable choice for demanding environments.

With a maximum output of 19 SCFM (Standard Cubic Feet per Minute), this pump is engineered to meet the high airflow requirements of professional tools such as sandblasters, paint sprayers, impact wrenches, and plasma cutters. The inclusion of an intake filter is a practical feature, protecting the internal components from dust and debris, which is vital for maintaining efficiency and extending the life of the pump.

Designed for use with 80-gallon or larger air tanks, this pump is clearly targeted at users with significant air storage needs. This capacity ensures that even demanding tools can run continuously without constant cycling of the compressor, leading to more efficient work and less stress on the motor and pump. Understanding its specifications is key to integrating it successfully into any heavy-duty pneumatic system.

The robust engineering behind this 5 HP air compressor pump makes it an ideal upgrade for older, less efficient units. Its ability to deliver a consistent and high volume of air means fewer interruptions during critical tasks. This reliability is paramount in professional environments where downtime can be costly and impact productivity.

Considering the complexity and power of such a unit, proper selection of the accompanying motor and air tank is crucial for optimal performance. This pump acts as a foundation, allowing users to tailor their air compression system to their exact needs, whether for a bustling auto repair shop or a busy manufacturing floor. It’s a foundational piece for serious air power.

Key Features and Specifications of the 5 HP Air Compressor Pump

The 5 HP Air Compressor Pump boasts a suite of features designed for maximum performance and durability in demanding applications. Understanding these specifications is crucial for anyone considering this unit as a replacement or for a new build. Each element contributes to its overall efficiency and lifespan.

Powerful 5 HP Rating

The ‘5 HP’ designation refers to the motor size typically required to drive this pump efficiently. This indicates a high-power capability, enabling the pump to handle significant workloads and produce substantial air pressure. A 5 HP motor ensures the pump operates at its optimal speed, maximizing air delivery.

This power rating is suitable for continuous operation in professional settings where consistent high-pressure air is a necessity. It signifies that the pump is designed for heavy-duty use, rather than intermittent light tasks. The motor, which must be purchased separately, should match or exceed this rating for best results.

Two-Stage Compression System

One of the most critical features of this 5 HP Air Compressor Pump is its two-stage design. In a two-stage compressor, air is compressed twice, first to an intermediate pressure and then to the final high pressure. This process results in cooler, drier air output and higher working pressures compared to single-stage units.

The benefits of two-stage compression are significant for industrial applications. It leads to improved efficiency, reduced moisture in the air lines, and less heat buildup within the pump itself. This translates directly to a longer lifespan for the pump and better performance from pneumatic tools.

Durable 2-Cylinder Cast Iron Construction

The pump features a two-cylinder design, which helps to balance the load and provide smoother operation, reducing vibration and wear. The use of cast iron for the cylinders and other critical components is a testament to its robust engineering. Cast iron is renowned for its excellent heat dissipation properties and resistance to wear.

This heavy-duty construction ensures the pump can withstand the rigors of continuous operation in harsh environments. Unlike aluminum or other lighter materials, cast iron retains its integrity under high temperatures and pressures, contributing significantly to the pump’s overall longevity and reliability. It’s built to last for many years of service.

High 19 SCFM Max Airflow

The 19 SCFM maximum airflow (Standard Cubic Feet per Minute) is a key performance indicator. This high volume of air delivery means the pump can support multiple air tools simultaneously or power tools with high air consumption, such as sandblasters, large impact wrenches, and paint spray guns, without experiencing significant pressure drops.

This level of SCFM output is ideal for automotive repair shops, fabrication facilities, and other environments where consistent, high-volume air is critical. It ensures that tasks can be completed efficiently, without waiting for the compressor to catch up. The 5 HP Air Compressor Pump delivers on its promise of substantial air power.

Integrated Intake Filter

An often-overlooked but crucial feature is the integrated intake filter. This filter prevents dust, dirt, and other airborne contaminants from entering the pump’s compression chambers. Clean air intake is essential for protecting the internal moving parts, such as pistons, rings, and valves, from abrasive wear.

Regular maintenance of the intake filter is vital for the longevity and efficiency of the pump. A clean filter ensures the pump operates at peak performance, preventing costly damage and maintaining air quality. This thoughtful inclusion highlights the pump’s design for sustained, reliable operation.

Designed for 80 Gallon or Larger Air Tanks

This pump is optimized for use with 80-gallon or larger air receiver tanks. This specification is important as it dictates the storage capacity of the compressed air system. Larger tanks reduce the frequency of compressor cycling, which in turn extends the life of both the pump and the motor.

Pairing the 5 HP Air Compressor Pump with an appropriately sized tank ensures that there’s always a sufficient reserve of air to handle sudden surges in demand. This makes it perfect for applications where continuous airflow is required, such as operating heavy machinery or performing extensive painting jobs. It’s built for serious capacity.

Model CS1105T

While the product description primarily focuses on its specifications, the model number CS1105T provides a specific identifier for this unit. This can be helpful for sourcing replacement parts or finding technical documentation. It signifies a particular design and engineering standard from the manufacturer, ensuring consistency.

Users should always refer to the specific model number when seeking support or additional information. The CS1105T is designed to offer a balance of power, durability, and efficiency, making it a reliable choice for heavy-duty air compression needs. Its robust construction ensures it can handle the demands of professional use.

Pros and Cons

When evaluating any significant piece of heavy machinery like the 5 HP Air Compressor Pump, a balanced look at its advantages and disadvantages is essential. This pump offers numerous benefits for high-demand applications, but it also comes with considerations that potential buyers should be aware of.

Pros:

• Exceptional Airflow for Demanding Tools: The 19 SCFM output is a major advantage, allowing this pump to effortlessly power high-consumption pneumatic tools like sandblasters, plasma cutters, and large impact wrenches. This capability ensures uninterrupted workflow in busy shops.
• Superior Durability and Longevity: Constructed from cast iron with a two-stage, two-cylinder design, this pump is built to last. Cast iron is known for its ability to withstand high temperatures and pressures, leading to a much longer operational life compared to pumps made with lighter materials.
• High Efficiency and Cooler Operation: The two-stage compression process significantly reduces heat buildup, which improves the pump’s efficiency and extends its lifespan. Cooler operation also means less moisture in the compressed air, benefiting air tools and downstream equipment.
• Ideal for Large-Scale Applications: Designed specifically for 80-gallon or larger tanks, this pump is perfectly suited for industrial, automotive, and commercial settings. It can handle continuous, heavy-duty use without frequent cycling, maintaining consistent pressure.
• Consistent Performance: The robust design and high SCFM rating ensure a steady and reliable supply of compressed air, even during peak demand. This consistency is crucial for professional work where fluctuating air pressure can compromise quality and efficiency.
• Rebuildable Design: Unlike many disposable smaller pumps, a heavy-duty cast iron pump like this one is often designed to be rebuildable. This means that worn components can be replaced, extending the life of the unit for decades with proper maintenance, offering excellent long-term value.
• Protective Intake Filter: The included intake filter is a vital component that prevents debris from entering the pump, safeguarding its internal mechanisms. This simple addition helps to maintain the pump’s efficiency and reduces the need for premature repairs, ensuring cleaner air.

Cons:

• Pump Only – Requires Separate Motor and Tank: This unit is a replacement pump head, meaning it does not come with a motor, air tank, or other necessary components. Buyers must source these separately, which adds to the overall cost and complexity of the setup process.
• Complex Installation: Integrating this 5 HP Air Compressor Pump into an existing system or building a new one from scratch requires a good understanding of mechanics and electrical wiring. Professional installation is often recommended to ensure safety and optimal performance.
• Significant Weight and Size: As a heavy-duty cast iron unit, this pump is substantial in weight and physical dimensions. This can make handling, shipping, and positioning challenging, potentially requiring multiple people or specialized equipment for installation.
• Noise Level: While two-stage pumps are generally more efficient, they can still produce significant noise during operation, especially when paired with a powerful motor. This might be a concern in noise-sensitive environments, requiring ear protection or sound dampening.
• Initial Cost Investment: While offering long-term value, the initial purchase price of the pump itself, combined with the cost of a suitable motor, tank, and installation, represents a considerable upfront investment. This makes it less suitable for casual or light-duty users.
• Break-in Period Required: Like many industrial-grade pumps, this unit will likely require a proper break-in period to ensure optimal performance and longevity. This involves running the pump without load for a specified duration, which adds a step before full operational use.

Who Should Buy the 5 HP Air Compressor Pump?

The 5 HP Air Compressor Pump is not a universal solution; rather, it caters to a specific demographic with particular needs for high-volume, continuous compressed air. Understanding its ideal user base helps prospective buyers determine if this powerful unit is the right fit for their operations.

Automotive Repair Shops and Garages

Professional automotive shops frequently use a wide array of pneumatic tools, from impact wrenches for tire changes to grinders, sanders, and paint sprayers. The 19 SCFM output of this 5 HP air compressor pump can easily keep up with the demands of multiple technicians using air tools simultaneously. Its two-stage design provides the consistent pressure needed for precision tasks like painting and bodywork, where air quality is paramount. The durability of cast iron construction means it can withstand the daily grind of a busy garage environment.

Fabrication and Welding Shops

In metal fabrication, air compressors power essential tools like plasma cutters, air hammers, and various grinding tools. The high SCFM and consistent pressure delivered by this 5 HP Air Compressor Pump are critical for efficient and clean cuts with plasma torches and for operating heavy-duty air tools without performance drops. The robust build ensures reliability in dusty, demanding workshop conditions, where equipment needs to be tough.

Agricultural and Farm Operations

Farms often require powerful air tools for equipment maintenance, tire inflation on large vehicles, and operating pneumatic systems for various agricultural processes. The ability of this pump to support large air tanks (80 gallons or more) means it can handle the intermittent yet intense demands of farm work, such as running an air impact wrench for tractor repairs or powering a paint sprayer for machinery upkeep. Its durability is well-suited for the challenging outdoor and workshop conditions of a farm.

Serious Hobbyists and Large Home Workshops

While an investment, serious home hobbyists with large workshops, particularly those involved in woodworking, automotive restoration, or extensive metalwork, might find this pump invaluable. If you frequently use high-CFM tools like sandblasters, large paint guns, or air-powered machinery, the consistent output of a 5 HP Air Compressor Pump will be a game-changer. It provides the professional-grade performance needed for ambitious projects, surpassing typical consumer-grade compressors.

These individuals are typically comfortable with the technical aspects of assembling a compressor system. They understand the value of a durable, rebuildable pump that offers long-term reliability and performance. For someone upgrading from a smaller, single-stage unit, this pump represents a significant leap in capability and efficiency, allowing them to tackle more complex and demanding tasks with ease.

Small Industrial and Manufacturing Facilities

For smaller industrial operations or manufacturing facilities that require a dedicated air supply for assembly lines, specialized machinery, or pneumatic clamping systems, this pump is an excellent choice. Its ability to maintain high pressure and airflow continuously is essential for maintaining production efficiency and quality control. The two-stage design also ensures a drier air supply, which is critical for sensitive equipment.

Users Replacing an Existing High-Performance Pump

If an existing 5 HP, two-stage air compressor pump has failed, this unit serves as an ideal replacement. It offers comparable specifications and performance, allowing users to leverage their existing motor, tank, and plumbing. This can be a more cost-effective solution than purchasing an entirely new compressor system, especially if the other components are still in good condition.

Ultimately, the 5 HP Air Compressor Pump is for those who cannot compromise on air power, durability, and efficiency. It demands a higher initial investment and some technical know-how for installation, but it delivers professional-grade performance and longevity that justifies the cost for the right applications. It’s a tool for serious work, designed to withstand the rigors of continuous use in demanding environments.

It’s important to consider your specific needs for SCFM, pressure, and duty cycle before committing to such a powerful pump. For those who fit the description above, this pump offers a robust and reliable foundation for a high-performance compressed air system. Its heavy-duty construction means it’s built to perform consistently for years.

Frequently Asked Questions about the 5 HP Air Compressor Pump

Here are some common questions and detailed answers regarding the 5 HP Air Compressor Pump, designed to help clarify its functionality, installation, and maintenance requirements.

Q1: What exactly is a two-stage air compressor pump, and why is it better?

A two-stage air compressor pump compresses air in two distinct steps. In the first stage, air is drawn into a larger cylinder and compressed to an intermediate pressure. This partially compressed air then moves to a smaller second cylinder where it is compressed to the final, higher pressure. This process is more efficient because it allows for cooler operation, as the air has time to cool between stages.

The benefits include higher maximum pressures (typically 175 PSI or more), increased efficiency, and significantly reduced moisture content in the compressed air. This results in better performance for high-demand tools and a longer lifespan for the pump itself due to less heat stress. You can learn more about air compressor technology on Wikipedia.

Q2: What kind of motor do I need for this 5 HP Air Compressor Pump?

This 5 HP Air Compressor Pump requires a separate electric motor, ideally rated at 5 horsepower, to drive it. The motor should be a single-phase (220-240V) or three-phase motor, depending on your electrical supply and specific requirements. It’s crucial to match the motor’s RPM (revolutions per minute) to the pump’s specifications to ensure optimal performance and prevent damage.

Consult the pump’s manual or manufacturer’s guidelines for exact motor specifications, including shaft size and mounting pattern. Proper motor selection is vital for the pump to achieve its advertised SCFM and pressure capabilities safely and efficiently. An undersized motor will lead to poor performance and potential motor burnout.

Q3: How difficult is it to install this replacement 5 HP Air Compressor Pump?

Installing this 5 HP Air Compressor Pump can be moderately complex and is generally recommended for individuals with strong mechanical and electrical aptitude, or by a professional. It involves mounting the pump head to an existing air tank, aligning it with the motor, securing belts, and connecting air lines and electrical components.

Key steps include ensuring proper alignment between the pump and motor pulleys, setting correct belt tension, and making sure all fittings are sealed to prevent air leaks. Incorrect installation can lead to premature wear, reduced efficiency, or even safety hazards. If unsure, it’s always best to seek professional assistance to ensure a safe and efficient setup.

Q4: What maintenance is required for the 5 HP Air Compressor Pump?

Regular maintenance is crucial for the longevity and performance of your 5 HP Air Compressor Pump. Key tasks include checking and changing the oil periodically (following manufacturer’s recommendations, often every 3-6 months depending on use). You should also regularly inspect and replace the intake filter to ensure clean air intake and prevent debris from damaging internal components.

Additionally, check belt tension, inspect for air leaks, and drain moisture from the air tank daily or after each use. Keeping the pump clean and free of dust and grime will also help with heat dissipation. Adhering to a strict maintenance schedule will significantly extend the life of your pump. For more general tips, consider resources on air compressor maintenance.

Q5: Can this 5 HP Air Compressor Pump be used with smaller air tanks?

While this 5 HP Air Compressor Pump is designed and optimized for 80-gallon or larger air tanks, it technically can be used with smaller tanks. However, using it with a significantly smaller tank (e.g., 30-gallon) is generally not recommended and can lead to several issues. A smaller tank will cause the compressor to cycle on and off much more frequently.

Frequent cycling puts excessive wear and tear on both the pump and the motor, shortening their lifespan. It also means the pump will be running more often, potentially leading to increased heat buildup and energy consumption. For optimal performance, efficiency, and longevity, sticking to the recommended 80-gallon or larger tank size is best.

Q6: What types of tools can a 19 SCFM pump effectively power?

A 19 SCFM air compressor pump is capable of powering a wide range of professional and heavy-duty pneumatic tools that require significant airflow. This includes high-consumption tools such as sandblasters (depending on nozzle size), plasma cutters, large paint spray guns (HVLP and conventional), air hammers, die grinders, and multiple impact wrenches (1/2-inch and larger) simultaneously. It can also support air-powered orbital sanders and air chisels with ease.

This high SCFM output ensures that these tools can operate continuously at their peak performance without experiencing noticeable pressure drops, which is critical for maintaining efficiency and quality in professional applications. It’s truly built for serious air tool usage.

Q7: What is the benefit of a cast iron pump head?

The primary benefit of a cast iron pump head, as featured in this 5 HP Air Compressor Pump, lies in its exceptional durability, heat dissipation properties, and longevity. Cast iron is a dense and robust material that can withstand the high temperatures and pressures generated during air compression much better than lighter materials like aluminum.

It dissipates heat more effectively, contributing to cooler operation and reducing thermal stress on internal components. This leads to less wear and tear, a longer operational lifespan, and greater reliability, especially in continuous-duty applications. Cast iron pumps are often considered the gold standard for heavy-duty, long-lasting performance.

Q8: How does this 5 HP Air Compressor Pump compare to a typical single-stage pump?

The 5 HP Air Compressor Pump, being a two-stage unit, offers significant advantages over a typical single-stage pump. Single-stage pumps compress air once and are generally suitable for lower pressure requirements and intermittent use, such as small nail guns or light-duty impact wrenches. They are typically less expensive and smaller.

In contrast, this two-stage pump delivers higher pressures (e.g., 175 PSI vs. 125 PSI), much greater SCFM (19 SCFM vs. typically 5-10 SCFM for single-stage), and operates cooler and more efficiently. This makes the two-stage pump ideal for continuous, heavy-duty applications and tools that demand high pressure and airflow, providing superior performance and longevity for professional environments.

Final Verdict

The 5 HP Air Compressor Pump (CS1105T) is an outstanding choice for anyone in need of a robust, high-performance replacement pump or the core component for a new, heavy-duty air compression system. Its two-stage, two-cylinder cast iron construction speaks volumes about its durability and long-term reliability, designed to withstand the most demanding operational environments.

With an impressive 19 SCFM output, this pump is more than capable of powering a wide array of high-consumption pneumatic tools, making it an indispensable asset for automotive shops, fabrication facilities, serious hobbyists, and small industrial operations. The consistent, high-volume airflow ensures uninterrupted workflow and optimal tool performance.

While it requires a separate motor and tank, and its installation may necessitate professional expertise, these considerations are minor when weighed against the pump’s exceptional performance and longevity. The initial investment is justified by its industrial-grade build and the significant boost it provides to productivity and efficiency.

For those seeking to upgrade an aging system or build a powerful new one from the ground up, this 5 HP Air Compressor Pump represents a smart and reliable investment. It delivers the power, efficiency, and durability required to keep heavy-duty operations running smoothly for years to come. It truly is a powerful and exceptional choice for demanding air compression needs.
