Burndy U Connector Die Kit: Ultimate, Excellent Value

The Burndy U Connector Die Kit is an essential investment for professionals who demand precision, reliability, and safety in their electrical connections. This comprehensive 8-piece kit provides the specialized tooling required for crimping a wide range of U-type connectors, ensuring optimal performance for heavy-duty applications. It stands as a testament to Burndy’s commitment to quality in the electrical industry.

Burndy U Connector Die Kit Overview

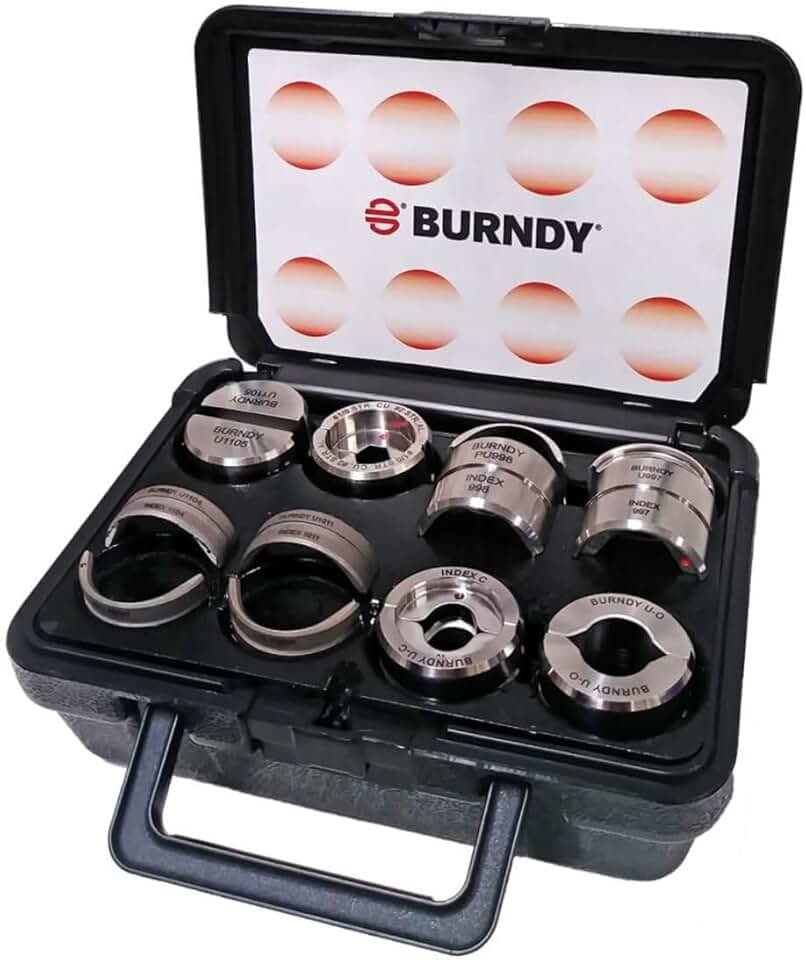

The Burndy U Connector Die Kit, specifically the UDIEKITHYGRD model, represents a specialized and indispensable toolset for electricians and technicians working with heavy-duty electrical connections. This 8-piece kit is designed to facilitate precise and reliable crimps for a variety of U-type connectors, which are commonly used in industrial, commercial, and utility settings.

At its core, the kit provides a range of interchangeable dies that fit into compatible Burndy hydraulic crimping tools. These dies are engineered to deform the connector and conductor into a solid, low-resistance electrical and mechanical bond, a process often referred to as cold welding.

The importance of a proper crimp cannot be overstated in electrical work. A poorly crimped connection can lead to increased resistance, excessive heat generation, energy loss, and even catastrophic failures such as arcing or fires. For this reason, professionals rely on high-quality tools like the Burndy kit to meet stringent safety and performance standards.

Burndy is a globally recognized leader in the electrical connector and tooling industry, with a long-standing reputation for producing robust and reliable products. Their tools are trusted by professionals worldwide for their durability and consistent performance in demanding environments.

This 8-piece kit typically covers a broad spectrum of wire gauges and connector sizes, making it versatile for various applications. It ensures that whether you are working with smaller gauge control wiring or large power distribution cables, you have the right die to achieve an optimal connection.

The UDIEKITHYGRD designation implies a focus on hydraulic crimping for grounding and other critical connections, highlighting its utility in situations where robust and secure electrical integrity is paramount. Investing in such a kit is an investment in safety, efficiency, and the longevity of electrical infrastructure.

Understanding the nuances of different connector types and the specific dies required is crucial for any professional. The U-type connector, for which this kit is designed, is known for its reliability and is widely specified in many electrical codes and standards.

This kit not only provides the physical tools but also embodies the peace of mind that comes with using manufacturer-approved, high-precision equipment. It minimizes the risk of errors and ensures that every crimp meets the highest industry benchmarks.

The design philosophy behind the Burndy U Connector Die Kit focuses on enhancing productivity while maintaining the highest levels of safety and connection quality. This balance is critical for professionals who cannot afford downtime or rework due to faulty connections.

For more information on Burndy’s extensive range of electrical solutions and their commitment to quality, you can visit their official website at Burndy.com.

Burndy U Connector Die Kit Key Features & Specs

The Burndy U Connector Die Kit is distinguished by several key features and specifications that underscore its professional-grade quality and performance. These elements collectively contribute to its ability to deliver superior electrical connections consistently.

Precision-Machined Hardened Steel Construction

Each die in the 8-piece kit is crafted from high-strength, hardened steel. This material choice is critical for resisting the immense forces involved in hydraulic crimping, ensuring the dies maintain their precise form over countless crimps without deforming or wearing prematurely.

The precision machining guarantees that each die perfectly matches the required connector and conductor dimensions. This accuracy is paramount for achieving the optimal cold-weld, which is essential for low resistance and high conductivity.

Optimized U-Die Geometry

The dies feature specific U-shaped cavities designed to encapsulate and compress the U-type connectors efficiently. This geometry is not arbitrary; it’s the result of extensive engineering to ensure maximum material flow and uniform compression, leading to a gas-tight electrical connection.

Proper crimp geometry minimizes voids within the connection, preventing oxidation and corrosion over time. This extends the lifespan of the connection and reduces the need for maintenance or rework, saving considerable time and resources.

Broad Compatibility with Burndy Hydraulic Crimpers

These dies are specifically engineered to integrate seamlessly with Burndy’s range of hydraulic crimping tools. This includes popular models such as the Y35, Y750, Y45, and others that utilize a common die retention system.

This dedicated compatibility ensures that the dies function as intended, providing the correct leverage and pressure for Burndy’s crimping specifications. Using non-Burndy dies with Burndy tools, or vice-versa, can compromise crimp quality and void warranties.

Comprehensive 8-Piece Size Range

While the exact sizes in an 8-piece kit can vary slightly, a typical Burndy U Connector Die Kit will cover a substantial range of conductor sizes. This often includes common copper and aluminum wire gauges from 6 AWG up to 500 or even 750 MCM (thousand circular mils).

This wide range makes the kit incredibly versatile for diverse applications, from connecting smaller control wires to terminating large feeder cables. Each die is clearly marked with its corresponding conductor size for easy identification and selection, minimizing errors on the job site.

Adherence to Industry Standards

Burndy dies are manufactured to meet or exceed various industry standards, including those set by UL (Underwriters Laboratories), CSA (Canadian Standards Association), and ANSI (American National Standards Institute). This compliance is vital for ensuring safety and regulatory acceptance in electrical installations.

Using certified dies helps professionals ensure their work passes inspection and provides confidence in the long-term reliability of the electrical system. This is a critical factor in high-stakes environments like power generation and distribution.

Durable Carrying Case

The 8-piece die kit typically comes housed in a rugged, durable carrying case. This case is designed to protect the precision dies from physical damage, corrosion, and loss during transport and storage, ensuring they remain in optimal condition for extended periods.

The organized compartments within the case also allow for quick and easy access to the correct die, improving efficiency on the job. Proper storage is crucial for maintaining the integrity and longevity of these specialized tools.

Enhanced Safety and Performance

The precise crimps produced by this kit contribute directly to enhanced electrical safety. By creating connections with minimal resistance, the risk of overheating, short circuits, and ground faults is significantly reduced.

Moreover, the robust mechanical connection ensures that terminals remain secure even under vibration or mechanical stress, leading to more reliable and longer-lasting electrical systems. This performance aspect translates into fewer service calls and greater operational uptime.

Pros & Cons

Evaluating any specialized tool requires a balanced look at its advantages and potential drawbacks. The Burndy U Connector Die Kit is no exception, offering significant benefits for professional use but also presenting considerations for potential buyers.

Key Advantages (Pros)

Unmatched Crimp Quality and Reliability

The primary advantage of the Burndy U Connector Die Kit is its ability to produce consistently high-quality crimps. These dies are engineered to create optimal cold welds, ensuring maximum conductivity and minimal resistance in electrical connections.

This precision is critical for preventing hot spots, power loss, and potential failures, which can have severe consequences in industrial and utility applications. The reliability offered translates directly into safer and more efficient electrical systems.

Exceptional Durability and Longevity

Constructed from hardened, high-strength steel, each die in the kit is built to withstand the rigors of continuous professional use. They resist wear, deformation, and corrosion, ensuring a long operational lifespan.

This durability means that the initial investment in the kit pays off over many years, reducing the need for frequent replacements and providing a dependable tool for critical tasks. Burndy’s reputation for robust tools is well-earned in this regard.

Comprehensive Coverage with 8-Piece Set

The 8-piece nature of this kit means it covers a broad spectrum of conductor and connector sizes, making it a versatile solution for varied projects. Professionals can tackle different jobs without needing to source individual dies, saving time and simplifying inventory management.

This comprehensive range ensures that the right die is always available for optimal crimping, from smaller grounding applications to larger power cable terminations, enhancing job site efficiency and preparedness.

Adherence to Industry Standards and Certifications

Burndy dies are designed and manufactured to meet stringent industry standards, including UL and CSA certifications. This compliance is essential for professionals working in regulated environments where safety and performance are non-negotiable.

Using certified tools provides assurance that the completed work will meet code requirements and stand up to inspection, reducing liability and increasing confidence in the integrity of the electrical system.

Enhanced Safety and Reduced Risk

Properly crimped connections, facilitated by these high-quality dies, significantly reduce electrical hazards. By minimizing resistance and ensuring a secure mechanical bond, the risk of loose connections, arcing, and overheating is substantially mitigated.

This directly contributes to a safer working environment for technicians and a more reliable electrical infrastructure for end-users. Investing in quality tooling is a proactive step towards safety.

Potential Disadvantages (Cons)

High Initial Investment Cost

The most significant drawback of the Burndy U Connector Die Kit is its relatively high price point. As a specialized, professional-grade tool, it represents a substantial investment, especially for smaller businesses or individual contractors.

While the cost is justified by its quality and longevity, it can be a barrier for those with limited budgets. It’s important to view this as a long-term investment rather than a short-term expense.

Specific Compatibility with Burndy Crimpers Only

These dies are designed exclusively for use with Burndy hydraulic crimping tools. They are not universally compatible with other brands of crimpers, which means users must either already own a compatible Burndy tool or be prepared to purchase one.

This brand-specific compatibility can limit flexibility and increase the overall cost if a compatible crimper is not already part of the user’s toolkit, making it less appealing for those invested in other brands.

Specialized Application Niche

The Burndy U Connector Die Kit is built for U-type connectors and heavy-duty electrical applications. It is not a general-purpose tool and would be overkill or unsuitable for lighter residential or automotive electrical work.

Its specialized nature means it’s best suited for a particular segment of the electrical industry, and its utility might be limited for professionals whose work primarily involves other connector types or smaller gauges.

Requires Proper Maintenance and Storage

Despite their robust construction, these precision dies require proper care and maintenance to ensure their longevity and accuracy. This includes regular cleaning, light oiling, and storage in their protective case to prevent rust or damage.

Neglecting maintenance can lead to premature wear or compromised performance, diminishing the value of the investment. It demands a commitment to tool care from the user.

Who Should Buy the Burndy U Connector Die Kit?

The Burndy U Connector Die Kit is a highly specialized tool, and its value is most fully realized by specific groups of professionals in the electrical industry. This kit is not a general-purpose item but a targeted solution for demanding applications.

Professional Electricians and Electrical Contractors

Electricians who regularly work on commercial, industrial, or utility-scale projects will find this kit indispensable. These environments often require the installation and maintenance of large gauge wiring and specialized connectors that demand precise crimping.

Electrical contractors managing significant projects, such as building new facilities, upgrading power infrastructure, or installing heavy machinery, will benefit from the efficiency and reliability these dies provide. The ability to consistently deliver code-compliant connections is paramount for their business.

Utility Workers and Linemen

For those involved in power generation, transmission, and distribution, the Burndy U Connector Die Kit is an essential part of their toolkit. Utility workers, including linemen, frequently deal with large conductors and critical connections that must withstand extreme environmental conditions and high current loads.

The precision and durability of Burndy dies ensure that connections in substations, overhead lines, and underground systems are secure and reliable, minimizing outages and ensuring public safety. This kit contributes directly to the resilience of electrical grids.

Industrial Maintenance Technicians

Technicians responsible for maintaining and repairing heavy industrial equipment, manufacturing lines, and plant power systems will greatly benefit from this kit. Industrial settings often feature robust electrical systems that rely on precisely crimped connections for continuous operation.

Downtime due to faulty electrical connections can be incredibly costly in industrial environments. Using high-quality Burndy dies helps prevent such issues, ensuring machinery runs smoothly and efficiently, reducing expensive repairs and lost productivity.

Engineers and Inspectors Requiring Certified Connections

Electrical engineers who specify materials and methods, and inspectors who verify compliance, understand the importance of certified tooling. The Burndy U Connector Die Kit facilitates connections that meet or exceed industry standards, making it easier to achieve approval and ensure long-term system integrity.

For installations where compliance with codes like the National Electrical Code (NEC) or local regulations is critical, having tools that produce certifiable results is non-negotiable. This kit provides that assurance.

The cost of failure in these applications—whether it’s a power outage, equipment damage, or a safety hazard—far outweighs the initial investment in high-quality tooling. Cheap, generic dies can lead to inconsistent crimps, creating hidden vulnerabilities that only manifest later as costly problems.

Moreover, the use of genuine Burndy dies often aligns with manufacturer warranties for connectors and equipment, providing an additional layer of protection and assurance for the professional. It’s about more than just making a connection; it’s about making the right connection.

Ultimately, anyone whose professional reputation, safety, and financial well-being depend on creating flawless, enduring electrical connections will find the Burndy U Connector Die Kit to be an invaluable asset. It’s a tool for those who prioritize quality and reliability above all else in their electrical work.

FAQ about the Burndy U Connector Die Kit

Here are some frequently asked questions about the Burndy U Connector Die Kit to help clarify its functionality, compatibility, and application for interested professionals.

Q1: What types of electrical connectors are these dies specifically designed for?

A1: The Burndy U Connector Die Kit is specifically designed for crimping U-type connectors. These connectors are typically used for heavy-duty applications with copper and aluminum lugs and splices, common in industrial, commercial, and utility electrical systems.

They are engineered to create a robust, gas-tight connection that ensures maximum current flow and mechanical integrity. This specialized design ensures optimal performance for the intended connector type.

Q2: Are these Burndy dies compatible with hydraulic crimpers from other brands?

A2: Generally, no. Burndy U Connector Dies are precision-engineered to work seamlessly with Burndy’s own line of hydraulic crimping tools, such as the Y35, Y750, and Y45 models. Their design ensures proper fit, pressure, and crimp geometry.

Using these dies with non-Burndy crimpers may result in improper crimps, potential tool damage, and could void product warranties. It is always recommended to use manufacturer-matched components for safety and performance.

Q3: What specific conductor sizes does an 8-piece U Connector Die Kit typically cover?

A3: While the exact sizes can vary per kit, an 8-piece Burndy U Connector Die Kit usually provides a comprehensive range for common industrial and utility applications. This often includes conductor sizes from smaller gauges like 6 AWG up to very large conductors, potentially 500 MCM or even 750 MCM.

Each die is clearly marked with the specific conductor size it is designed for, ensuring accurate selection for a given job. This broad coverage makes the kit highly versatile for varied professional needs.

Q4: How do I ensure I’m using the correct die for a specific wire and connector combination?

A4: To ensure you select the correct die, always refer to the specific connector manufacturer’s instructions and the crimper’s die index chart. Burndy provides detailed documentation and charts that specify which die corresponds to which conductor size and connector type.

Matching the die to the connector and conductor size is critical for achieving a proper, code-compliant crimp. Incorrect die selection can lead to under-crimping or over-crimping, both of which compromise connection integrity and safety.

Q5: What are the primary benefits of using genuine Burndy dies compared to generic or aftermarket alternatives?

A5: Genuine Burndy dies offer superior precision, durability, and adherence to rigorous industry standards. They are engineered for optimal material flow and compression, resulting in gas-tight, low-resistance connections that generic dies may not consistently achieve.

The use of genuine dies ensures compliance with certifications (UL, CSA) and often maintains equipment warranties. This translates to enhanced safety, long-term reliability, and reduced risk of costly rework or failures compared to potentially inferior aftermarket options.

Q6: What maintenance is required for the Burndy U Connector Die Kit to ensure its longevity?

A6: To maximize the lifespan and performance of your Burndy U Connector Die Kit, it’s essential to keep the dies clean and free from debris after each use. A light application of oil can help prevent rust and corrosion, especially if stored in humid environments.

Always store the dies in their designated protective carrying case. This prevents physical damage, keeps them organized, and protects them from environmental elements, ensuring they remain in optimal condition for years of service.

Q7: Is this die kit overkill for standard residential electrical wiring projects?

A7: Yes, for typical residential electrical wiring, the Burndy U Connector Die Kit is generally considered overkill. Residential applications usually involve smaller gauge wires and different connector types (e.g., twist-on wire connectors, smaller crimp terminals) that don’t require the heavy-duty U-type crimping these dies provide.

This kit is specifically designed for the larger conductor sizes and more robust connections found in commercial, industrial, and utility settings. Investing in this kit for residential work would be an unnecessary expense.

Q8: What is the expected lifespan of Burndy U Connector Dies under typical professional use?

A8: With proper use, regular cleaning, and appropriate storage, Burndy U Connector Dies are designed for exceptional longevity. Made from hardened steel and precision-machined, they can withstand many years, even decades, of heavy professional use.

Their robust construction ensures that they maintain their critical dimensions and crimping performance over a very long operational period, making them a durable and reliable asset for any electrical professional. Their lifespan far exceeds that of lesser quality alternatives.

Final Verdict

The Burndy U Connector Die Kit (UDIEKITHYGRD) stands as an ultimate and excellent investment for electrical professionals. Its specialized design, robust construction, and comprehensive 8-piece range make it an indispensable tool for anyone working with heavy-duty U-type connectors in commercial, industrial, or utility environments.

While the initial cost is significant, it is a reflection of the precision engineering, durable materials, and consistent performance that Burndy tools are known for. This kit delivers reliable, code-compliant crimps that ensure the safety, efficiency, and longevity of critical electrical systems.

The ability to create gas-tight, low-resistance connections consistently mitigates risks of overheating and failure, ultimately saving time, money, and potentially lives. It’s a tool that pays for itself many times over through reduced maintenance, increased uptime, and enhanced safety.

For professionals who cannot compromise on connection quality and demand tools that meet the highest industry standards, the Burndy U Connector Die Kit is not just a purchase; it’s a strategic investment in their craft and their reputation. It’s a testament to quality that ensures every crimp is a perfect one.

For further technical details and specific product guides, you can always refer to the official Burndy documentation or consult resources on electrical crimping best practices, such as those found on Wikipedia’s crimping page.
