Magister Hydraulic Cylinder: Superior Performance Worth It

The Magister Hydraulic Cylinder (WCT 4×32) stands out as a robust and reliable component for various heavy-duty applications, offering impressive power and durability. This double-acting hydraulic ram, with its 4-inch bore and 32-inch stroke, is engineered to meet the demanding requirements of agricultural, construction, and industrial equipment. Its welded design and cross-tube ends ensure secure mounting and long-lasting operation under high pressure.

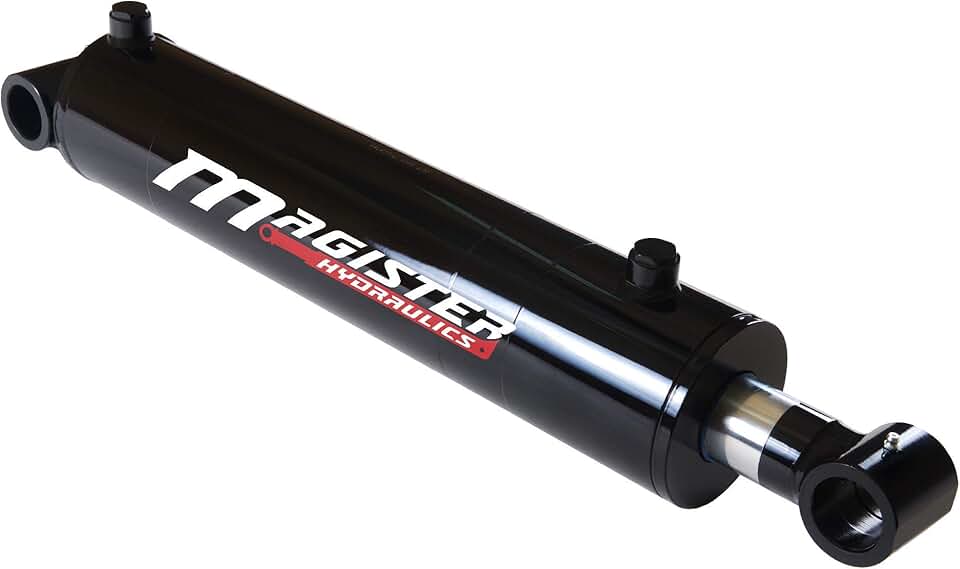

Magister Hydraulic Cylinder Overview

The Magister Hydraulic Cylinder, specifically the WCT 4×32 model, represents a commitment to strength and reliability in the world of heavy machinery hydraulics. This component is not merely a part; it is the core of countless operations requiring linear force, whether for lifting, pushing, pulling, or tilting. Understanding its fundamental role is crucial for anyone involved in equipment maintenance or design.

This particular model is a double-acting hydraulic piston, meaning it applies force in both extension and retraction strokes. This capability is essential for applications where controlled movement in both directions is necessary, offering greater precision and efficiency compared to single-acting cylinders. Its design allows for constant engagement, maximizing productivity.

The “4×32” designation refers to its 4-inch bore and 32-inch stroke. The bore diameter dictates the theoretical force output of the cylinder, while the stroke length determines the maximum travel distance of the piston rod. These dimensions are critical for matching the cylinder to specific application requirements, ensuring adequate force and reach.

Magister has engineered this cylinder for a high working pressure of 3500 PSI. This impressive pressure rating indicates the cylinder’s ability to handle substantial loads and operate effectively in demanding environments. It speaks to the quality of materials and construction, designed to prevent premature failure under stress.

The welded construction of the cylinder body enhances its structural integrity and resistance to leakage, particularly important in harsh operating conditions. Unlike tie-rod cylinders, welded cylinders are generally more compact and robust, making them suitable for applications where space is limited and durability is paramount. This design choice contributes significantly to its longevity.

Furthermore, the inclusion of cross-tube ends provides a sturdy and versatile mounting solution. These ends are designed to accept pins, allowing for a pivot point that accommodates angular movement during operation. This feature makes the Magister Hydraulic Cylinder highly adaptable for various types of linkages and machinery.

This cylinder is an investment for professionals seeking consistent performance and minimal downtime. It’s built to withstand the rigors of heavy use, from agricultural implements like plows and loaders to construction equipment such as excavators and backhoes. Its robust nature ensures that it can keep up with the demands of continuous operation.

Choosing the right hydraulic cylinder is critical for equipment performance and safety. The Magister WCT 4×32 model offers a compelling combination of power, precision, and durability. It embodies the characteristics required for reliable hydraulic control in challenging work environments, making it a preferred choice for many.

Check Price on Amazon

Magister Hydraulic Cylinder Key Features & Specs

The design and engineering of the Magister Hydraulic Cylinder are centered around delivering robust performance and long-term reliability. A detailed examination of its key features and specifications reveals why this model is so highly regarded in heavy machinery applications. Each component and dimension plays a vital role in its overall functionality and durability.

One of the most prominent features is its 4-inch bore diameter. The bore size directly influences the amount of force the cylinder can generate. With a 4-inch bore, this cylinder can exert significant push and pull forces, making it suitable for tasks that demand considerable power. This is calculated by multiplying the hydraulic pressure by the piston’s surface area.

Complementing the bore is the substantial 32-inch stroke length. This dimension dictates how far the piston rod can extend and retract, providing a generous range of motion for various applications. A longer stroke is beneficial for tasks requiring extensive linear movement, such as lifting heavy loads to a considerable height or extending a boom.

The cylinder is rated for an impressive 3500 PSI working pressure. This high-pressure capability is a testament to the cylinder’s robust construction and quality materials. It ensures that the cylinder can operate safely and efficiently under extreme load conditions without compromising its structural integrity. This high pressure rating is crucial for heavy-duty industrial tasks.

The double-acting design is a cornerstone of this cylinder’s versatility. Unlike single-acting cylinders that only exert force in one direction (usually extension) and rely on gravity or an external force for retraction, double-acting cylinders use hydraulic fluid to power both extension and retraction. This provides precise control over movement, crucial for intricate operations.

Construction plays a critical role in durability, and the welded hydraulic ram design of the Magister Hydraulic Cylinder offers superior strength. Welded cylinders are known for their compact profile and enhanced resistance to shock and vibration compared to tie-rod cylinders. This makes them ideal for demanding environments where structural integrity is paramount.

The cross-tube ends are another significant design element. These ends feature sturdy tubes designed to accommodate mounting pins, allowing the cylinder to pivot freely as it extends and retracts. This type of mounting is common in agricultural and construction equipment, providing flexibility in linkage design and reducing stress on mounting points. Proper pin sizing is essential for security.

The piston rod itself is typically made from high-strength, hard chrome-plated steel. This plating provides excellent corrosion resistance and a smooth, durable surface that minimizes friction and wear on the seals. A high-quality rod ensures the cylinder maintains its performance over a long operational lifespan, even in abrasive environments.

Sealing systems within the cylinder are engineered to prevent fluid leakage and maintain pressure efficiency. High-quality seals, often made from advanced elastomers or composite materials, are essential for the cylinder’s double-acting functionality and overall reliability. These seals must withstand high pressures and temperatures.

The ports for hydraulic fluid connection are designed for standard fittings, ensuring compatibility with a wide range of hydraulic systems. Proper sizing and threading of these ports are crucial for leak-free connections and efficient fluid flow. Users should always confirm compatibility with their existing hydraulic lines and pumps.

Overall, the Magister Hydraulic Cylinder is a meticulously engineered component. Its combination of a large bore, long stroke, high-pressure rating, double-acting capability, welded construction, and versatile cross-tube ends positions it as a top-tier choice for heavy-duty hydraulic applications. It’s built for performance and resilience.

Check Price on Amazon

Pros & Cons

Evaluating any heavy machinery component requires a balanced look at its advantages and potential drawbacks. The Magister Hydraulic Cylinder, while highly capable, is no exception. Understanding these points helps users make informed decisions and manage expectations regarding its integration and performance in various systems.

Key Advantages (Pros)

The primary advantage of this cylinder is its robust 3500 PSI working pressure. This high rating allows it to handle extremely heavy loads and perform in high-stress applications without concern for premature failure. It provides a significant margin of safety and power for demanding tasks, ensuring consistent output even under peak requirements.

Its durable welded construction offers superior structural integrity compared to traditional tie-rod cylinders. The welded design means fewer potential leak paths and greater resistance to shock and vibration, which are common in heavy equipment environments. This contributes to a longer service life and reduced maintenance needs over time.

The double-acting design provides precise and controlled movement in both extension and retraction. This capability is invaluable for applications requiring accurate positioning and consistent force in both directions, such as steering systems, loader arms, or precise material handling. It enhances operational efficiency and safety.

Furthermore, the cross-tube ends offer versatile mounting options. These ends are ideal for applications where the cylinder needs to pivot, accommodating angular changes during operation. This flexibility simplifies integration into existing machinery and allows for dynamic movement, which is critical for many heavy equipment functions.

Users often praise its reliability and long lifespan. The combination of high-quality materials, robust design, and high-pressure rating translates into a cylinder that can withstand continuous, heavy use for years. This reduces downtime and the overall cost of ownership, making it a cost-effective choice in the long run.

The 4-inch bore and 32-inch stroke provide a powerful combination for significant force generation and ample reach. This specific sizing makes it suitable for a broad range of medium to heavy-duty tasks, from agricultural tillage equipment to construction vehicle attachments. It strikes a good balance between power and operational range.

Potential Disadvantages (Cons)

One potential drawback is that the specific cross-tube mounting may require custom brackets for some installations. While versatile, cross-tube ends might not be a direct bolt-on replacement for all cylinder types, potentially requiring fabrication or modification of existing mounts. This adds to installation time and cost.

Another consideration is the weight of the cylinder. Given its robust construction and substantial size (4-inch bore, 32-inch stroke), this unit can be quite heavy. This weight can be a factor during installation, requiring lifting equipment, and it can also add to the overall weight of the machinery, potentially affecting balance or transport.

While the 3500 PSI rating is a pro, it also means that the cylinder requires a hydraulic system capable of delivering and maintaining such pressures. Users with lower-pressure systems might need to upgrade their pumps or valves, adding to the initial investment. Compatibility with existing hydraulic infrastructure is an important check.

Finally, the initial cost of a high-quality, heavy-duty cylinder like the Magister Hydraulic Cylinder can be higher than lighter-duty alternatives. While this is offset by its longevity and performance, it represents a larger upfront investment. Budget considerations should align with the long-term value and expected use.

In summary, the Magister Hydraulic Cylinder offers exceptional performance and durability, making it a strong contender for demanding hydraulic applications. Its few drawbacks are mostly related to installation specifics and system compatibility, which can be mitigated with proper planning and assessment.

Who Should Buy the Magister Hydraulic Cylinder?

The Magister Hydraulic Cylinder (WCT 4×32) is not a one-size-fits-all solution, but it is an exceptional choice for specific users and applications that demand high performance and unwavering reliability. Its robust construction and powerful specifications make it particularly well-suited for environments where failure is not an option.

Firstly, agricultural professionals and farmers will find this cylinder invaluable. It is perfectly suited for powering implements such as front-end loaders, backhoes, plows, and cultivators. The 4-inch bore provides the necessary lifting and digging force, while the 32-inch stroke offers ample reach for various farming tasks. Its durability withstands harsh field conditions.

Construction companies and contractors are another prime demographic. This cylinder can be integrated into excavators, skid steers, forklifts, and other heavy equipment where precise and powerful linear motion is required. Whether it’s lifting heavy materials, operating attachments, or steering large vehicles, the 3500 PSI rating ensures consistent performance.

Industrial maintenance teams and manufacturers also stand to benefit significantly. In factory settings, hydraulic cylinders are used in presses, material handling systems, and automation equipment. The Magister Hydraulic Cylinder’s double-acting nature and high-pressure capability make it ideal for applications demanding precise control and continuous operation in demanding industrial environments.

Individuals involved in custom machinery fabrication or equipment upgrades will appreciate the versatility of the cross-tube ends. These allow for flexible mounting in bespoke designs or as robust replacements for worn-out cylinders. Its standard sizing also ensures compatibility with many existing hydraulic systems, simplifying the integration process.

Furthermore, those who prioritize longevity and reduced downtime will see the value in this Magister product. The welded construction and high-quality components are designed for extended service life, minimizing the need for frequent replacements or repairs. This translates into significant cost savings over the operational life of the equipment.

Businesses operating in harsh or extreme environments where cylinders are exposed to dirt, debris, moisture, or heavy impacts will find its robust design particularly appealing. The Magister Hydraulic Cylinder is built to endure, maintaining its integrity and functionality in conditions that would quickly degrade lesser quality cylinders.

Finally, anyone looking for a direct replacement for an existing 4×32 welded cross-tube hydraulic cylinder will find this model to be a high-quality, reliable option. It offers specifications that meet or exceed many OEM parts, providing a dependable solution for getting equipment back in service quickly and efficiently.

In summary, the Magister Hydraulic Cylinder is best suited for professionals and businesses that rely on heavy machinery for their operations. Its combination of power, precision, and durability makes it an excellent investment for anyone needing a dependable hydraulic solution in agriculture, construction, industrial, or custom fabrication applications.

FAQ about Magister Hydraulic Cylinder

Understanding the specifics of a heavy-duty component like the Magister Hydraulic Cylinder often involves answering common questions. This FAQ section aims to provide clear, concise, and helpful information for potential buyers and current users, addressing practical concerns and technical details.

Q1: What does “double-acting” mean for this hydraulic cylinder?

A: A double-acting hydraulic cylinder means that hydraulic fluid pressure is used to extend the piston rod and also to retract it. This provides controlled movement and force in both directions, unlike single-acting cylinders which only push in one direction and rely on external forces (like gravity or a spring) for retraction. This offers greater precision and versatility.

Q2: What is the significance of the 4-inch bore and 32-inch stroke?

A: The 4-inch bore refers to the internal diameter of the cylinder barrel, which directly impacts the force the cylinder can generate. A larger bore means greater force. The 32-inch stroke is the maximum distance the piston rod can travel from its fully retracted to its fully extended position. These dimensions determine the cylinder’s power and range of motion.

Q3: Can this cylinder be used for both pushing and pulling applications?

A: Yes, absolutely. As a double-acting cylinder, the Magister Hydraulic Cylinder is designed to exert force in both the extension (pushing) and retraction (pulling) directions. This makes it highly versatile for a wide array of applications where bidirectional force is required, such as operating a loader or a press.

Q4: What kind of hydraulic fluid is recommended for the Magister Hydraulic Cylinder?

A: Generally, standard hydraulic oils (e.g., ISO VG 32 or VG 46) are recommended for most hydraulic cylinders. However, it’s always best to consult the manufacturer’s specific guidelines or the equipment’s owner’s manual for the exact type and viscosity. Using the correct fluid ensures optimal performance and longevity of the seals and internal components.

Q5: How do the cross-tube ends affect mounting and application?

A: Cross-tube ends feature a welded tube at each end of the cylinder, designed to accept a pin. This allows the cylinder to pivot freely at its mounting points, accommodating angular movement during operation. This type of mounting is common in agricultural and construction machinery where the cylinder’s angle changes as the equipment moves. It provides robust and flexible attachment.

Q6: What is the typical lifespan of a welded hydraulic cylinder like this one?

A: The lifespan of a hydraulic cylinder largely depends on its operating conditions, maintenance, and quality of construction. Given the Magister Hydraulic Cylinder’s robust welded design, high-pressure rating, and quality materials, it is built for a long service life under heavy-duty use. With proper maintenance and correct application, it can last for many years, often exceeding a decade.

Q7: Is this cylinder suitable for continuous, heavy-duty operation?

A: Yes, the Magister Hydraulic Cylinder is specifically designed for continuous, heavy-duty operation. Its 3500 PSI working pressure, durable welded construction, and high-quality seals ensure it can withstand the rigors of demanding tasks in agricultural, construction, and industrial settings. It is engineered for resilience and consistent performance.

Q8: Where can I find more technical specifications or a detailed manual?

A: For detailed technical specifications or a comprehensive manual, it is recommended to visit the official Magister Hydraulics website or contact their customer support directly. Additionally, the product listing on Amazon often contains downloadable specification sheets or links to manufacturer resources for more in-depth information.

For more general information on how hydraulic cylinders work, you can visit Wikipedia’s Hydraulic Cylinder page. Understanding the fundamental principles can help in selecting and maintaining your equipment.

For detailed insights into hydraulic system components and design, a valuable resource is Hydraulics & Pneumatics, which offers extensive articles on hydraulic cylinders and their applications.

Final Verdict

After a thorough review, the Magister Hydraulic Cylinder (WCT 4×32) emerges as a highly capable and exceptionally durable component for heavy machinery. Its impressive specifications, including a 4-inch bore, 32-inch stroke, and a robust 3500 PSI working pressure, position it as a top-tier choice for demanding hydraulic applications. This cylinder is built to perform and last.

The double-acting design provides precise control over both extension and retraction, a critical feature for complex operations in agriculture, construction, and industrial sectors. The welded construction further enhances its resilience, making it highly resistant to the shocks and vibrations inherent in heavy-duty environments. This translates to fewer repairs and longer operational life.

While the cross-tube mounting might require specific brackets for some installations and its weight demands careful handling, these are minor considerations when weighed against its overall performance and reliability. The investment in a Magister Hydraulic Cylinder is justified by its long-term value, reduced downtime, and consistent power delivery.

For professionals and businesses that rely on their equipment day in and day out, the Magister Hydraulic Cylinder offers peace of mind. It’s a component engineered for tough jobs, ensuring that heavy machinery operates efficiently and effectively. This cylinder represents a smart choice for anyone seeking superior hydraulic performance and enduring quality.
