Reed DM3MECH Tapping Machine: Ultimate, Impressive Tool

The Reed DM3MECH Tapping Machine stands out as a robust and reliable solution for performing hot taps on pressurized pipes without the need for system shutdowns. This mechanical hot tapping tool is designed to provide professionals with a safe and efficient method for making connections, adding branches, or installing gauges on live pipelines.

Reed DM3MECH Tapping Machine Overview

The Reed DM3MECH Tapping Machine is a specialized mechanical tool designed for making connections to pressurized pipelines without the need to shut down the system. This process, commonly known as hot tapping or pressure tapping, is crucial in various industrial and commercial applications where interrupting flow is either impossible or extremely costly. The DM3MECH facilitates this complex operation with a straightforward, hand-operated mechanism.

Hot tapping involves attaching a tapping machine to a pipe, typically through a saddle or a valve, and then cutting a hole in the pipe wall while the fluid or gas continues to flow. The Reed DM3MECH excels in this function by providing a stable and controlled cutting environment. Its mechanical feed system ensures a consistent and precise cut, minimizing risks associated with working on live systems.

The primary advantage of using a hot tapping machine like the DM3MECH is its ability to maintain operational continuity. This translates into significant cost savings by avoiding downtime, especially in critical infrastructure like water distribution, natural gas lines, or industrial processing plants. For professionals in these fields, the DM3MECH offers a practical and reliable solution.

Reed Manufacturing is a reputable name in the pipe tool industry, known for producing durable and high-performance tools for over a century. The DM3MECH embodies this legacy, featuring robust construction designed to withstand the rigors of professional use. Its design focuses on simplicity and effectiveness, making it a valuable asset for experienced technicians.

Understanding the operational context is key to appreciating the DM3MECH. It’s not a tool for casual DIYers but rather for skilled tradespeople who understand pipeline mechanics and safety protocols. The machine’s mechanical nature means it doesn’t require external power sources, offering versatility in remote or power-limited environments.

The kit typically comes complete with necessary accessories such as hole saws or an arbor, meaning it’s ready for deployment upon arrival. This comprehensive approach ensures that users have the right components to begin tapping operations efficiently. The tool’s compact design also aids in maneuverability in tight spaces, which is often a challenge in pipe work.

While the Reed DM3MECH is highly effective, it is important to match its capabilities to the specific job requirements. It is generally best suited for smaller diameter taps and specific pressure ranges. Larger diameter or higher pressure applications might necessitate more powerful hydraulic or pneumatic tapping machines, but for its intended scope, the DM3MECH performs admirably.

The overall user experience with the Reed DM3MECH Tapping Machine is characterized by its straightforward operation and dependable results. It requires careful setup and adherence to safety guidelines, but once properly installed, it provides a secure and efficient method for making pipeline connections without disruption. Its robust build quality suggests a long service life, making it a sound investment for professional use.

Reed DM3MECH Tapping Machine Key Features & Specs

The Reed DM3MECH Tapping Machine is engineered with a set of features that underscore its utility and reliability in hot tapping applications. Its design prioritizes mechanical precision, durability, and ease of use in the field. Understanding these core attributes helps highlight why this tool is a staple for many professionals.

Mechanical Feed System

At the heart of the DM3MECH is its robust mechanical feed system. Unlike hydraulic or pneumatic machines that rely on external power, this unit is hand-operated, providing precise control over the cutting process. The mechanical advancement of the hole saw ensures a steady and controlled cut, which is vital when working on pressurized lines to prevent sudden pressure releases or tool binding.

This hand-cranked mechanism offers significant advantages in environments where electricity or compressed air is unavailable or impractical. It also gives the operator direct feedback on the cutting resistance, allowing for immediate adjustments to prevent damage to the pipe or the cutting tool. The simplicity of the mechanical feed also reduces potential points of failure compared to more complex systems.

Durable Construction Materials

Reed Tools are renowned for their heavy-duty construction, and the DM3MECH is no exception. It is typically constructed from high-grade steel and other robust materials designed to withstand the harsh conditions often encountered in pipeline work. This ensures longevity and consistent performance even after prolonged use in challenging environments.

The tool’s components, including the feed screw, body, and sealing mechanisms, are built to resist corrosion and wear. This durability is critical for a tool that operates under pressure and in various weather conditions. Investing in a tool with such robust construction minimizes replacement costs and maximizes operational uptime.

Compatibility and Size Range

The Reed DM3MECH Tapping Machine is designed to work with a range of pipe sizes, typically accommodating taps from 1/2 inch to 2 inches (DN15 to DN50). This makes it ideal for residential, commercial, and light industrial applications where smaller branch connections are common. It can tap into various pipe materials, including ductile iron, cast iron, steel, and PVC.

The machine’s versatility in material compatibility is a significant advantage, allowing technicians to use a single tool across different types of piping systems. However, it is essential to use the correct hole saw type for each material to ensure a clean cut and prevent damage to the tool or the pipe. Always consult the manufacturer’s guidelines for specific material recommendations.

Complete Kit Inclusion

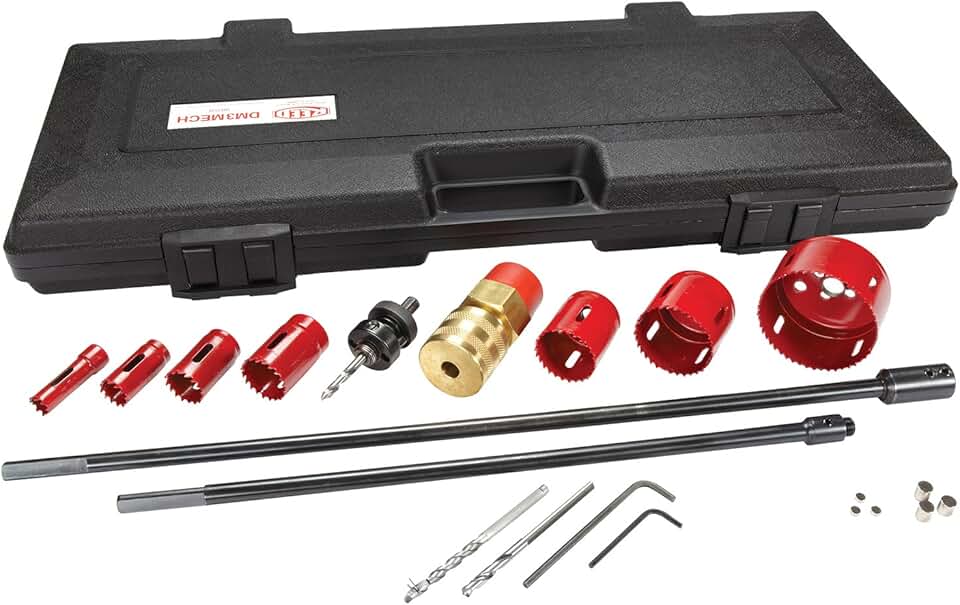

A notable feature of the DM3MECH is that it often comes as a complete kit, including the necessary hole saws or arbor. This means users don’t have to purchase these critical components separately, which simplifies procurement and ensures compatibility. The inclusion of these accessories makes the tool ready for immediate use upon delivery.

The kit contents typically vary based on the specific package, but generally, it provides everything needed for basic tapping operations. This convenience is particularly beneficial for contractors or maintenance teams who need to deploy tools quickly without waiting for additional parts. For more information on Reed’s product range, you can visit their official website.

Pressure Rating and Sealing

Operating on pressurized lines demands a secure and reliable sealing mechanism. The DM3MECH is designed with robust seals that prevent leaks during the tapping process, ensuring operator safety and environmental protection. It can typically handle pressures up to 100 PSI (6.9 bar) or higher, depending on the specific model and setup.

The sealing system is integral to the hot tapping process, creating a watertight and airtight connection between the tapping machine and the pipe. This allows the hole saw to cut through the pipe wall without any loss of fluid or gas, maintaining the integrity of the live system. Proper installation and maintenance of these seals are paramount for safe operation.

User-Friendly Design

Despite its specialized function, the Reed DM3MECH Tapping Machine features a relatively straightforward design that facilitates setup and operation. Its components are designed for easy assembly and disassembly, which is crucial for field maintenance and transport. The clear mechanical feedback during operation also contributes to its user-friendliness.

The machine’s compact footprint also allows for use in confined spaces, a common scenario in many plumbing and utility applications. While specialized training is always recommended for hot tapping, the intuitive nature of the DM3MECH helps to reduce the learning curve for experienced professionals.

Pros & Cons

Evaluating any specialized tool like the Reed DM3MECH Tapping Machine requires a balanced look at its advantages and limitations. While it offers significant benefits for specific applications, understanding its drawbacks helps set realistic expectations and ensures it’s the right tool for the job.

Pros of the Reed DM3MECH Tapping Machine

• Mechanical Reliability and Durability: The DM3MECH’s all-mechanical design means fewer complex parts that can fail compared to hydraulic or pneumatic systems. Its robust construction with high-grade materials ensures a long operational life, even in harsh working conditions. This mechanical simplicity translates to dependable performance day in and day out.
• Allows for Hot Tapping on Live Systems: This is arguably the most significant advantage. The ability to make connections or install new branches on pressurized pipes without shutting down the system saves immense amounts of time and money. It prevents service interruptions, avoiding costly downtime for businesses and inconvenience for customers.
• Cost-Effectiveness in Acquisition and Maintenance: Compared to more complex powered tapping machines, the DM3MECH typically has a lower initial purchase price. Its mechanical nature also means simpler maintenance requirements and fewer specialized parts to replace, contributing to lower long-term ownership costs.
• No External Power Required: Being hand-operated, the DM3MECH is completely independent of electrical outlets, generators, or air compressors. This makes it exceptionally versatile for remote job sites, emergency repairs, or locations where power access is limited or impractical. It enhances portability and setup speed.
• Precise Manual Control: The manual feed mechanism gives the operator a direct feel for the cutting process. This tactile feedback allows for immediate adjustments, ensuring a smoother, more controlled cut and reducing the risk of binding or damaging the pipe. Precision is paramount in hot tapping, and manual control provides that.
• Complete Kit for Immediate Use: The product often comes as a complete package, including the necessary hole saws or arbor. This convenient bundling means professionals can start working immediately without sourcing additional components, saving time and ensuring compatibility.

Cons of the Reed DM3MECH Tapping Machine

• Requires Manual Effort, Potentially Slower: As a hand-operated tool, the DM3MECH demands physical effort from the operator. This can be more tiring over extended periods or for multiple taps. The cutting speed is also inherently slower than that of hydraulically or electrically powered tapping machines, which can impact productivity on larger projects.
• Limited to Specific Pipe Sizes and Materials: While versatile, the DM3MECH has limitations regarding the maximum pipe diameter and pressure it can effectively handle. It is generally best suited for smaller taps (typically up to 2 inches) and moderate pressures. For larger diameter pipes or very high-pressure systems, a more heavy-duty, powered machine would be necessary.
• Specialized Skill and Training Recommended: Although the machine itself is mechanically straightforward, the process of hot tapping is inherently complex and carries significant risks if not performed correctly. Proper training in hot tapping procedures, safety protocols, and understanding pipeline dynamics is crucial. This is not a tool for beginners.
• Potential for Operator Fatigue: For jobs requiring numerous taps or working with tougher pipe materials, the manual effort involved can lead to operator fatigue. This fatigue can, in turn, affect precision and safety. Project planning should account for this manual aspect to ensure consistent quality and safety standards.
• Not Ideal for Very High-Volume Tapping: Due to its manual operation and slower speed, the DM3MECH is less suitable for projects requiring a very high volume of hot taps within a short timeframe. In such scenarios, the efficiency gains from powered tapping machines would outweigh the initial cost difference.

Who Should Buy the Reed DM3MECH Tapping Machine?

The Reed DM3MECH Tapping Machine is a highly specialized tool, and as such, it caters to a specific demographic of professionals and organizations. It’s not a universal tool for every plumbing or utility task, but rather a critical asset for those dealing with live pipeline interventions. Understanding its ideal user helps in making an informed purchasing decision.

Plumbers and Mechanical Contractors: For plumbers and mechanical contractors who frequently work on commercial or residential water and gas lines, the DM3MECH is invaluable. It allows them to add new connections for water heaters, irrigation systems, or gas appliances without disrupting the main supply to a building or neighborhood. This capability significantly reduces client inconvenience and potential loss of revenue for businesses.

Utility Companies (Water, Gas, HVAC): Municipal water departments, natural gas providers, and HVAC service companies often need to perform maintenance, upgrades, or emergency repairs on live lines. The DM3MECH provides a reliable method for these critical tasks, ensuring continuous service to customers. Its portability and independence from external power sources are particularly beneficial for field operations.

Fire Suppression System Installers: Installing or modifying fire sprinkler systems often requires tapping into existing water mains. The DM3MECH allows these professionals to make secure connections without draining entire systems, which can be a time-consuming and complex process. Safety and efficiency are paramount in fire protection, and this tool supports both.

Industrial Maintenance Teams: Manufacturing plants, refineries, and other industrial facilities frequently have complex piping networks carrying various fluids and gases. Maintenance teams in these environments can use the DM3MECH to install gauges, sensors, or new branch lines without shutting down production processes, thereby minimizing costly downtime.

Professionals Working in Remote or Power-Limited Areas: The mechanical, hand-operated nature of the DM3MECH makes it perfect for job sites where electrical power or compressed air is not readily available. This includes rural locations, underground work, or emergency repairs where setting up generators is impractical. Its self-contained operation is a major advantage.

Contractors on a Budget: While hot tapping machines can be expensive, the DM3MECH typically offers a more affordable entry point compared to its hydraulic or pneumatic counterparts. For contractors or small businesses that need hot tapping capabilities but have budget constraints, this mechanical option provides a cost-effective solution without compromising core functionality for smaller taps.

Those Prioritizing Durability and Low Maintenance: Given its robust construction and mechanical simplicity, the DM3MECH appeals to users who value tools that can withstand heavy use and require minimal, straightforward maintenance. It’s built to last, offering a reliable tool that performs consistently over many years with proper care.

In summary, the Reed DM3MECH Tapping Machine is ideal for experienced professionals who regularly perform smaller to medium-sized hot taps on various pipe materials and pressures. Its mechanical reliability, independence from external power, and cost-effectiveness make it a go-to tool for maintaining continuity in live pipeline systems across numerous industries.

FAQ about Reed DM3MECH Tapping Machine

Hot tapping is a specialized field, and users often have specific questions about the tools involved. Here are some frequently asked questions about the Reed DM3MECH Tapping Machine to help clarify its capabilities and proper usage.

Q1: What exactly is hot tapping, and why is it necessary?

Hot tapping, also known as pressure tapping, is the process of making a connection to an existing pipeline or pressure vessel while it remains in service and under pressure. It is necessary to avoid costly and disruptive shutdowns of systems, allowing for the addition of new branch connections, installation of instruments, or completion of repairs without interrupting flow. This technique is crucial in industries where continuous operation is vital.

Q2: What pipe materials can the Reed DM3MECH Tapping Machine tap into?

The Reed DM3MECH is versatile and capable of tapping into a variety of common pipe materials. These include ductile iron, cast iron, steel, and PVC. The key to successful tapping across different materials lies in selecting the appropriate hole saw designed for that specific material to ensure a clean cut and prevent damage to the pipe or the tool. Always verify compatibility with the specific hole saw being used.

Q3: What sizes of taps can this machine handle?

The Reed DM3MECH Tapping Machine is typically designed for smaller to medium-sized taps. It can generally accommodate hole saws for connections ranging from 1/2 inch to 2 inches (DN15 to DN50) in diameter. This range makes it suitable for residential and commercial plumbing, fire suppression systems, and light industrial applications. For larger taps, more heavy-duty tapping machines might be required.

Q4: Is it safe to use the Reed DM3MECH Tapping Machine on pressurized lines?

Yes, the Reed DM3MECH is designed for safe operation on pressurized lines when used correctly and according to established safety protocols. The machine features robust sealing mechanisms to prevent leaks during the tapping process. However, hot tapping is an inherently high-risk procedure that requires proper training, adherence to manufacturer guidelines, and strict safety measures to prevent accidents and ensure the integrity of the pipeline.

Q5: Does the DM3MECH require any external power source?

No, the Reed DM3MECH Tapping Machine is a fully mechanical, hand-operated tool. It does not require any external power source such as electricity, hydraulics, or compressed air. This makes it highly portable and ideal for use in remote locations, confined spaces, or emergency situations where access to power is limited or unavailable. Its mechanical nature also simplifies its operation and maintenance.

Q6: How does the DM3MECH compare to hydraulic or pneumatic tapping machines?

The DM3MECH is a mechanical machine, offering simplicity, lower cost, and independence from external power. Hydraulic and pneumatic machines, on the other hand, are powered, offering faster cutting speeds and less operator fatigue, especially for larger taps or high-volume work. Powered machines are generally more expensive and require an external power source but excel in efficiency for heavy-duty applications. The DM3MECH is best for smaller, less frequent taps where portability and cost are key.

Q7: What maintenance does the Reed DM3MECH Tapping Machine require?

Maintenance for the DM3MECH is relatively straightforward due to its mechanical design. Regular cleaning after use, inspection of seals and cutting tools for wear, and periodic lubrication of moving parts (like the feed screw) are crucial. Storing the machine in a dry, protected environment will also prolong its lifespan. Always refer to the Reed Manufacturing user manual for detailed maintenance procedures and schedules.

Final Verdict

The Reed DM3MECH Tapping Machine stands as an impressive and essential tool for professionals who require a reliable, non-disruptive method for making connections to live pipelines. Its mechanical design offers a blend of simplicity, durability, and cost-effectiveness that makes it a strong contender in its niche. For specific applications, it truly represents an ultimate solution.

While it may not offer the speed of powered hydraulic systems, its independence from external power sources and robust construction provide unparalleled versatility for field use. The ability to perform hot taps without shutting down systems translates into significant operational savings and continuous service, a critical advantage in many industries. The inclusion of hole saws or an arbor as a complete kit further enhances its immediate utility.

However, prospective buyers must recognize its limitations, particularly regarding the size and pressure of pipes it can handle and the manual effort required. This tool is best suited for experienced professionals who understand the intricacies and safety protocols of hot tapping. Its 3.5-star rating, while not perfect, reflects its specialized nature and the specific expectations users might have for such a tool.

Ultimately, for plumbers, utility workers, fire suppression installers, and industrial maintenance teams needing a dependable, budget-friendly, and portable hot tapping solution for smaller to medium-sized connections, the Reed DM3MECH Tapping Machine is an excellent investment. It delivers on its promise of efficient, non-disruptive pipeline modifications, making it a valuable addition to any professional toolkit.
