SIGLENT SPD3303X Power Supply: Ultimate Excellent Choice

The SIGLENT SPD3303X Power Supply stands out as a formidable instrument in the realm of benchtop DC power supplies, crucial for anyone involved in electronics design, testing, or repair. This comprehensive review will delve deep into its capabilities, performance, and why it has earned a reputation as a reliable workhorse for both hobbyists and seasoned professionals.

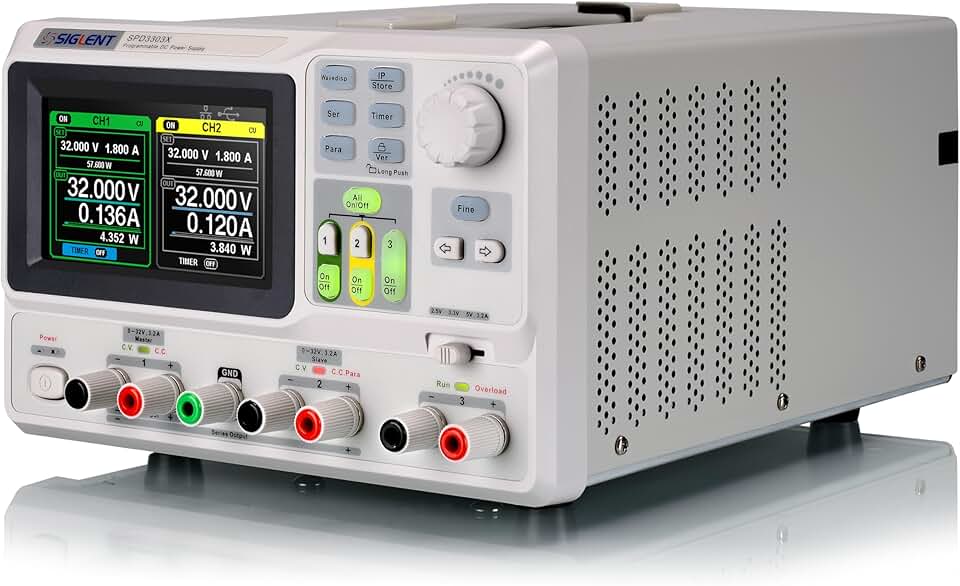

SIGLENT SPD3303X Power Supply Overview

The SIGLENT SPD3303X Power Supply is a linear DC power source designed to provide stable and precise voltage and current for a wide array of electronic applications. It features a triple-output design, which means it can deliver power from three independent channels simultaneously. This capability is invaluable for testing complex circuits that require multiple voltage rails.

Unlike switching power supplies, which can introduce noise, the SPD3303X’s linear design ensures exceptionally low ripple and noise. This makes it ideal for powering sensitive analog circuits, audio equipment, or any application where clean power is paramount. Its robust construction and intuitive interface aim to streamline the user experience.

Siglent, a well-regarded name in test and measurement equipment, has engineered the SPD3303X to meet the rigorous demands of modern electronics development. From hobbyist benches to university labs and professional R&D departments, this unit offers a blend of performance, reliability, and advanced features that justify its position in the market.

The power supply’s design emphasizes user control and safety. It includes comprehensive protection mechanisms, ensuring both the device under test and the power supply itself are safeguarded against accidental overloads or short circuits. This attention to detail is critical for protecting valuable prototypes and maintaining a safe working environment.

Its versatility is further enhanced by its ability to operate in various modes, including independent, series, and parallel tracking. This flexibility allows users to configure the outputs to meet specific testing requirements, whether it’s for higher voltage, higher current, or isolated power for different sections of a circuit. The bright, clear display provides immediate feedback on output status.

Understanding the fundamental role of a reliable DC power supply in any electronics endeavor is key to appreciating the SPD3303X. It’s not merely a source of electricity; it’s a precision instrument that enables accurate testing, debugging, and characterization of electronic components and systems. Its stable output directly contributes to reliable measurement results.

The SPD3303X series is known for its excellent regulation characteristics, meaning that its output voltage or current remains consistent despite changes in load or input line voltage. This steady performance is a hallmark of quality benchtop power supplies and critical for repeatable experimental outcomes. Siglent’s commitment to quality is evident in every aspect of its design.

For those familiar with Siglent’s broader product range, the SPD3303X aligns with their reputation for producing high-value, high-performance instruments. It represents a significant upgrade for users moving beyond basic power bricks or DIY solutions, offering professional-grade stability and control that are essential for serious electronics work.

The user interface, often a critical factor in daily usability, is designed for clarity and ease of access. Dedicated buttons and rotary encoders allow for quick adjustments and parameter changes, minimizing setup time. This thoughtful design ensures that users can focus more on their projects and less on wrestling with their equipment.

In essence, the SIGLENT SPD3303X Power Supply is more than just a power source; it’s an investment in precision, reliability, and versatility for any electronics professional or enthusiast. Its comprehensive feature set and robust performance make it a cornerstone for a wide range of applications, from educational settings to advanced research and development.

SIGLENT SPD3303X Power Supply Key Features & Specs

The SIGLENT SPD3303X Power Supply is packed with features designed to provide precise, stable, and versatile power for a multitude of electronic projects. Understanding these key specifications is crucial for appreciating its value in a lab or workshop setting.

Triple Independent Outputs

One of the most compelling features of the SPD3303X is its three independent and isolated output channels. Channels 1 and 2 typically offer a configurable range of 0-30V and 0-3A each, providing substantial flexibility for various voltage and current requirements. The third channel usually provides fixed voltage options such as 2.5V, 3.3V, or 5V at up to 3A, which are common logic and microcontroller power rails.

This triple-output capability allows engineers and hobbyists to power different sections of a circuit with distinct voltage levels or to test multiple devices simultaneously. The isolation between channels prevents ground loops and interference, ensuring cleaner power delivery and more accurate testing, which is paramount for sensitive designs.

High Resolution and Accuracy

The SPD3303X boasts an impressive output resolution of 1mV and 1mA for its main channels. This level of granularity enables extremely fine adjustments to both voltage and current, which is critical when working with sensitive components or performing precise characterization tasks. Such high resolution ensures that the power supply can precisely meet the exacting demands of modern electronics.

Beyond resolution, the accuracy of the SPD3303X is also stellar, with typical load and line regulation specifications under 0.01% + 2mV for voltage and 0.01% + 2mA for current. This means the output remains remarkably stable even under varying load conditions or fluctuations in the AC input power. Consistent output is a cornerstone of reliable experimental results.

Low Ripple and Noise

A true hallmark of a quality linear power supply is its ability to deliver clean power with minimal ripple and noise. The SPD3303X excels in this regard, with specifications typically less than 1mVrms for voltage ripple and less than 3mArms for current ripple. This low noise floor is essential for powering analog circuits, RF components, and sensitive digital systems where noise can introduce errors or degrade performance.

Working with low-noise power is particularly important for audio amplifier design, sensor interfacing, and precision measurement circuits. The clean output from the SPD3303X helps prevent unwanted signal corruption, allowing engineers to focus on the circuit’s inherent performance rather than power supply artifacts. This contributes significantly to the integrity of test results.

Comprehensive Protection Features

Safety is a paramount concern when dealing with electrical equipment, and the SPD3303X incorporates robust protection mechanisms. It includes Over Voltage Protection (OVP), Over Current Protection (OCP), and Over Temperature Protection (OTP). These features safeguard both the power supply itself and the delicate circuits connected to it from potential damage due to faults or incorrect settings.

OVP prevents the output voltage from exceeding a preset safe limit, while OCP limits the output current to prevent damage from short circuits or excessive load demands. OTP ensures the unit does not overheat during prolonged operation. These layers of protection provide peace of mind, especially when experimenting with new designs or debugging complex systems where unexpected events can occur.

Intuitive User Interface and Display

The power supply features a vibrant 4.3-inch TFT LCD display that provides clear, real-time readouts of voltage, current, and power for all active channels. This graphical interface enhances usability, allowing users to quickly monitor output status and navigate settings. The display is bright and offers good viewing angles, making it easy to read in various lab environments.

Complementing the display are dedicated output control buttons for each channel, along with rotary encoders for precise parameter adjustment. This combination of visual feedback and tactile controls makes operation intuitive and efficient, minimizing the learning curve. Users can quickly set and recall desired voltage and current limits.

Advanced Operating Modes and Features

Beyond independent operation, the SPD3303X offers flexible output configurations:

• Series Tracking Mode: Combines two channels to provide a higher voltage output (e.g., up to 60V). This is useful for applications requiring higher voltage rails than a single channel can provide.
• Parallel Tracking Mode: Combines two channels to provide a higher current output (e.g., up to 6A). This mode is ideal for powering current-hungry devices or larger loads.
• Output On/Off Control: Allows users to enable or disable the outputs with a single button press, preventing accidental power delivery and facilitating safe connection/disconnection of circuits.
• Output Timer: Some models include a timer function, allowing the output to be turned on or off after a specified duration, useful for automated testing or burn-in processes.

Connectivity and Remote Control

The SPD3303X is equipped with standard communication interfaces, including USB Host, USB Device, and LAN (Ethernet). The USB Host port allows for saving and recalling settings, or logging data to a USB flash drive. The USB Device port enables direct connection to a PC for remote control and data acquisition.

The LAN interface provides network connectivity, allowing the power supply to be controlled remotely from a computer on the same network. This is particularly useful in automated test setups, industrial applications, or educational environments where multiple users might need to share or control the device. Siglent often provides PC software for easy remote operation and data logging, enhancing the overall utility of the power supply.

Memory Storage

The ability to store and recall up to 5 groups of system settings (voltage, current, protection limits, etc.) is a significant convenience feature. This allows users to quickly switch between frequently used configurations without manually re-entering parameters. This saves time and reduces the potential for errors, especially in environments with repetitive testing tasks.

These comprehensive features collectively make the SIGLENT SPD3303X Power Supply a highly capable and versatile instrument. Its blend of precision, safety, and user-friendliness positions it as an excellent choice for a wide spectrum of electronic applications. For more detailed specifications, you can refer to the official Siglent product page: Siglent SPD3303X Series.

Pros & Cons

Evaluating any piece of equipment involves weighing its advantages against its potential drawbacks. The SIGLENT SPD3303X Power Supply, while highly regarded, is no exception. Understanding its pros and cons can help potential buyers make an informed decision aligned with their specific needs and budget.

Pros of the SIGLENT SPD3303X Power Supply

1. Exceptional Output Stability and Low Noise

The SPD3303X’s linear design is a significant advantage, delivering exceptionally stable voltage and current with minimal ripple and noise. This clean power is crucial for sensitive electronic circuits, particularly in analog, RF, and audio applications where power supply noise can easily corrupt signals and invalidate measurements. Its performance in this area is comparable to much more expensive units.

Engineers working on precision circuits will particularly appreciate the peace of mind that comes with knowing their power source is not introducing unwanted artifacts. This stability translates directly into more reliable testing, more accurate debugging, and ultimately, higher quality project outcomes. It’s a foundational element for serious electronics work.

2. Triple Independent, Isolated Outputs

The provision of three fully independent and isolated output channels offers unparalleled versatility. This allows users to power multiple parts of a circuit at different voltage levels or to test several components simultaneously without interference. The isolation is key for preventing ground loops and ensuring the integrity of each power rail.

This feature significantly reduces the need for multiple single-output power supplies, saving bench space and simplifying wiring. For complex embedded systems or mixed-signal designs, the ability to provide isolated power to digital and analog sections from a single unit is incredibly efficient and beneficial.

3. High Resolution and Accuracy

With 1mV/1mA resolution on its main channels, the SPD3303X allows for extremely fine control over output parameters. This precision is vital for tasks requiring exact voltage or current settings, such as characterizing semiconductors, calibrating sensors, or fine-tuning power-sensitive circuits. The high accuracy ensures that the set values are indeed the values delivered to the load.

The excellent load and line regulation specifications further attest to its precision. This means that the output voltage and current remain consistent even when the load on the power supply changes or when there are minor fluctuations in the wall power. This consistency is fundamental for repeatable and reliable experimental results.

4. Comprehensive Protection Features

The built-in Over Voltage Protection (OVP), Over Current Protection (OCP), and Over Temperature Protection (OTP) are invaluable safety features. These mechanisms protect both the power supply and, more importantly, the expensive or delicate devices under test from accidental damage. Short circuits, incorrect wiring, or unexpected power surges are common occurrences in electronics development, and these protections are a lifesaver.

Having these safeguards significantly reduces the risk of costly component failures and provides a safer working environment. Users can experiment with greater confidence, knowing that the power supply is actively monitoring and protecting against potentially destructive events. This robust safety suite adds significant value.

5. User-Friendly Interface and Connectivity

The 4.3-inch TFT LCD display provides a clear, intuitive interface for monitoring and controlling the outputs. Coupled with dedicated buttons and rotary encoders, it makes operation straightforward and efficient. The ability to save and recall settings further streamlines workflow, especially for repetitive tasks or shared lab environments.

The inclusion of USB and LAN connectivity opens up possibilities for remote control, automated testing, and data logging. This modern connectivity allows for seamless integration into automated test benches or for monitoring long-duration experiments from a computer. Siglent’s accompanying PC software often enhances this remote control capability, making it a very versatile tool.

Cons of the SIGLENT SPD3303X Power Supply

1. Higher Initial Investment

While offering excellent value for its features, the SPD3303X is a professional-grade instrument, and its price point of around $631.00 reflects that. For absolute beginners or hobbyists with very limited budgets, this might represent a significant initial investment. There are cheaper, less capable power supplies available, though they often compromise on precision, stability, or features.

However, it’s important to view this as an investment. The precision, reliability, and advanced features can save time and prevent costly damage to components in the long run. For serious hobbyists or professionals, the cost is often justified by the capabilities and peace of mind it provides over years of use.

2. Learning Curve for Advanced Features

For someone completely new to benchtop power supplies or advanced electronics, the sheer number of features and operating modes (series, parallel, tracking, protection settings) might present a slight learning curve. While the interface is intuitive, understanding when and how to best utilize all its capabilities requires some study and practice.

The comprehensive manual and online resources from Siglent can help mitigate this, but it’s not a plug-and-play device in the same way a simple wall adapter is. However, this ‘con’ is also a ‘pro’ in disguise, as the complexity stems from its powerful versatility. Users willing to invest the time will unlock significant potential.

3. Limited High Current Applications

While the SPD3303X offers up to 3A per channel (or 6A in parallel mode for two channels), this might not be sufficient for very high-current applications, such as powering large motors, high-power LEDs, or certain industrial systems. For these specific use cases, a dedicated high-current power supply would be more appropriate.

It’s important to match the power supply’s capabilities to the demands of the projects. For most general electronics, embedded systems, and even many power electronics experiments, 3A or 6A is perfectly adequate. However, users with consistently high-current needs should consider higher-amperage alternatives or additional equipment.

Who Should Buy the SIGLENT SPD3303X Power Supply?

The SIGLENT SPD3303X Power Supply is a versatile and high-performance instrument, making it suitable for a diverse range of users. Its features cater to individuals and institutions that require precise, stable, and multi-channel power delivery for their electronic projects and research.

Electronics Hobbyists and Enthusiasts

For serious electronics hobbyists who are moving beyond basic breadboarding and into more complex circuit design, the SPD3303X is an excellent upgrade. Its triple outputs allow for powering microcontrollers, sensors, and analog components simultaneously, simplifying the setup for intricate projects. The high resolution and low noise are particularly beneficial for ensuring their creations function as intended without power-related anomalies.

The protection features are also a huge plus for hobbyists, as accidental short circuits or incorrect wiring are common during experimentation. These safeguards can prevent costly damage to components and the power supply itself, saving money and frustration in the long run. It’s an investment that grows with their skills.

Educational Institutions and Students

Universities, colleges, and technical schools can greatly benefit from equipping their labs with the SPD3303X. Its robust construction can withstand frequent student use, and the intuitive interface makes it accessible for learning. Students can learn fundamental power supply concepts, experiment with various circuit configurations, and understand the importance of clean power.

The triple outputs are ideal for teaching advanced topics like op-amp circuits, digital logic with multiple voltage rails, or mixed-signal design. The ability to remotely control the unit via LAN can also facilitate classroom demonstrations or allow students to work on projects from different locations, fostering a more modern learning environment. It’s a reliable tool for practical electrical engineering education.

Research and Development (R&D) Labs

Engineers and researchers in R&D settings require precision, reliability, and versatility from their test equipment, and the SPD3303X delivers on all fronts. Its high accuracy and low ripple are crucial for characterizing new components, developing prototypes, and conducting repeatable experiments. The multiple outputs are invaluable for powering complex System-on-Chips (SoCs) or custom PCBs with diverse power requirements.

The remote control capabilities and memory functions are especially useful in automated test environments, allowing for efficient data collection and rapid switching between test parameters. For validating designs and ensuring product quality, a stable and precise power source like the SPD3303X is an indispensable tool in any serious R&D lab. Its performance directly impacts the quality of research outcomes.

Embedded Systems Developers

Developing embedded systems often involves working with microcontrollers, sensors, and various peripheral modules, each potentially requiring different voltage levels. The SPD3303X’s triple outputs are perfectly suited for this, allowing developers to power the main MCU, an analog sensor, and a communication module (e.g., Wi-Fi or Bluetooth) simultaneously. This simplifies the debugging process and ensures stable operation across the system.

The precise voltage control is critical for optimizing power consumption in battery-powered devices and for ensuring components operate within their specified ranges. The OCP feature helps protect against unexpected current surges when connecting new peripherals, which is a common occurrence during the iterative development process of embedded hardware. It’s a fundamental tool for any embedded lab.

Repair Technicians and Service Centers

Electronics repair requires a reliable and flexible power source to diagnose faults and test repaired devices. The SPD3303X’s ability to provide multiple voltage rails makes it ideal for powering a wide range of consumer electronics, industrial control boards, or specialized equipment. Its stability ensures that testing conditions are consistent, aiding in accurate fault isolation.

The protection features are also highly valuable in a repair scenario, as technicians often encounter unknown circuit conditions that could lead to short circuits. The SPD3303X helps prevent further damage during diagnostic procedures. Its robust build quality also means it can withstand the daily rigors of a busy service center, making it a dependable choice for professionals.

Small-Scale Manufacturing and Quality Control

For small businesses or startups involved in manufacturing electronic products, the SPD3303X can serve as a crucial tool for quality control and functional testing. Its programmable features allow for consistent application of specific voltage and current profiles to devices during end-of-line testing. This ensures that every product meets its power consumption and operational specifications before shipping.

The remote control and data logging capabilities can be integrated into semi-automated test jigs, improving efficiency and reducing human error in the testing process. For ensuring product reliability and adherence to specifications, the precision and stability of the SPD3303X are significant assets in a manufacturing environment. It offers professional-grade performance without the cost of industrial-scale equipment.

In summary, the SIGLENT SPD3303X Power Supply is a powerful and versatile tool that justifies its cost through its precision, stability, and comprehensive features. It’s an excellent investment for anyone who regularly works with electronics and demands high performance and reliability from their benchtop equipment. Its broad applicability across various sectors makes it a cornerstone instrument.

FAQ about SIGLENT SPD3303X Power Supply

Here are some frequently asked questions about the SIGLENT SPD3303X Power Supply, providing further insights into its operation and capabilities.

Q1: What are the maximum voltage and current outputs for each channel?

A1: The main channels (CH1 and CH2) typically provide up to 30V and 3A each. The third channel (CH3) usually offers fixed voltage options such as 2.5V, 3.3V, or 5V, also with a maximum current of 3A. This configuration offers significant flexibility for various testing needs.

It’s important to note that when using series or parallel tracking modes, these values can be combined. In series mode, you can achieve up to 60V (by combining CH1 and CH2), while in parallel mode, you can get up to 6A (by combining CH1 and CH2). Always refer to the specific model’s datasheet for exact specifications.

Q2: Does the SPD3303X have over-current protection (OCP) and over-voltage protection (OVP)?

A2: Yes, the SIGLENT SPD3303X Power Supply is equipped with comprehensive protection features, including both Over Voltage Protection (OVP) and Over Current Protection (OCP). These safeguards are critical for protecting both the power supply itself and the device under test from potential damage due to faults or incorrect settings. Users can set specific OVP and OCP limits for each channel.

Additionally, it typically includes Over Temperature Protection (OTP), which shuts down the unit if it begins to overheat. These multiple layers of protection provide peace of mind, especially when working with valuable prototypes or conducting experiments where unforeseen circumstances might arise. They are essential for a safe and reliable lab environment.

Q3: Can I control the SIGLENT SPD3303X Power Supply remotely from a computer?

A3: Absolutely. The SPD3303X offers various connectivity options for remote control. It typically includes USB (Host and Device) and LAN (Ethernet) interfaces. The USB Device port allows for direct connection to a PC, while the LAN port enables network control. Siglent provides PC software that facilitates remote operation, parameter setting, and data logging.

This remote control capability is highly beneficial for automated test setups, long-duration experiments, or integration into larger test systems. It allows engineers to program complex test sequences and monitor results without needing to be physically present at the bench. This enhances efficiency and enables more sophisticated testing methodologies.

Q4: What is the ripple and noise specification of this power supply?

A4: The SIGLENT SPD3303X Power Supply is a linear power supply, known for its low ripple and noise characteristics. Typically, the voltage ripple is specified to be less than 1mVrms, and the current ripple is less than 3mArms. These low figures are excellent for powering sensitive electronic circuits.

Low ripple and noise are crucial for applications such as analog circuit design, RF (Radio Frequency) testing, and audio amplifier development, where unwanted noise from the power supply can significantly degrade signal integrity and measurement accuracy. The clean output ensures that your circuit’s performance is not compromised by the power source.

Q5: Is the SPD3303X suitable for charging batteries?

A5: While the SPD3303X can technically provide constant voltage and constant current, which are modes used for battery charging, it is generally not recommended as a primary battery charger. It lacks dedicated battery charging profiles and safety features found in specialized chargers, such as termination algorithms, temperature monitoring, and cell balancing for multi-cell packs.

Using a lab power supply for battery charging without proper knowledge and supervision can be risky and may damage the battery or create a safety hazard. For occasional, small-scale testing of battery characteristics under controlled conditions, it might suffice for experienced users. However, for regular charging, a purpose-built battery charger is always the safer and more appropriate choice.

Q6: What is the difference between Constant Voltage (CV) and Constant Current (CC) modes?

A6: These are the two fundamental operating modes of the SIGLENT SPD3303X Power Supply:

• Constant Voltage (CV) Mode: In this mode, the power supply maintains a constant output voltage, regardless of changes in the load resistance, as long as the current drawn does not exceed the set current limit. If the load tries to draw more current than the set limit, the power supply automatically switches to CC mode. This is the most common mode for powering circuits.
• Constant Current (CC) Mode: In this mode, the power supply maintains a constant output current, regardless of changes in the load resistance, as long as the voltage required does not exceed the set voltage limit. If the load resistance drops too low, causing the voltage to drop below the set limit, the power supply automatically switches to CV mode. CC mode is often used for charging batteries, driving LEDs, or testing current-sensitive devices.

The SPD3303X seamlessly transitions between these modes, indicated by lights on the front panel, providing dynamic and protected power delivery. This automatic crossover is a key feature of modern bench power supplies.

Q7: What kind of display does the SPD3303X use?

A7: The SPD3303X features a 4.3-inch TFT LCD display. This color graphical display provides clear, real-time readouts of voltage, current, and power for all active channels. The graphical interface is intuitive and makes it easy to navigate menus, set parameters, and monitor output status at a glance.

The high-resolution display enhances the user experience by presenting information in an organized and easily digestible format. It’s a significant upgrade from older, segmented LED displays, offering more detailed feedback and making the power supply more pleasant to operate during long hours of testing. For further information on DC power supplies, you might consult resources like Wikipedia’s Power Supply page.

Final Verdict

The SIGLENT SPD3303X Power Supply is an outstanding piece of test equipment that delivers exceptional performance, versatility, and reliability for a wide range of electronic applications. Its linear design ensures ultra-low ripple and noise, making it an ideal choice for powering sensitive analog and digital circuits where clean power is paramount.

The triple independent and isolated outputs, combined with high resolution (1mV/1mA) and excellent regulation, provide unparalleled precision and flexibility. Whether you’re a seasoned professional, an academic researcher, or a dedicated hobbyist, the ability to power multiple sections of a circuit with distinct, stable voltage and current levels from a single unit is incredibly valuable.

While the initial investment might be higher than entry-level units, the robust protection features (OVP, OCP, OTP), intuitive 4.3-inch TFT LCD interface, and comprehensive connectivity options (USB, LAN) justify its cost. These features not only safeguard your valuable projects but also streamline your workflow and enable advanced testing methodologies.

The SPD3303X is built to last and designed to meet the rigorous demands of continuous lab use. Its reputation for stability and accuracy makes it a cornerstone instrument for anyone serious about electronics design, testing, and troubleshooting. It truly represents an ultimate and excellent choice in its category.

If you are looking for a powerful, precise, and reliable benchtop DC power supply that will serve you well for years to come, the SIGLENT SPD3303X Power Supply comes with our highest recommendation. It’s an investment that pays dividends in accurate results, protected equipment, and efficient project completion.
